Roof Leak Diverter 5'x5'
★★★★★ 5.0 out of 4 reviews · Google Reviews- Roof leak diverter —5′×5′ — catches & channels roof leaks
- Hangs from ceiling — directs water to drain via attached hose
- Heavy-duty vinyl — reusable & easy to clean
- FREE Shipping — ships to the Continental US
Fill out the form below and we’ll respond within 1 business day.
Share this product
Product Overview
Roof Leak Diverter 5'x5'
Technical Specifications
Roof Leak Diverter 5'x5'
| SKU | ALD55S |
|---|---|
| Dimensions | 5 ft x 5 ft |
| Coverage Area | 25 sq ft |
| Material | Vinyl-Coated Fabric |
| Color | Yellow |
| Weight | 4 lbs |
| Straps Included | No (sold separately - ALDSTRAPS) |
| Hose Included | No (sold separately - ALDHOSES) |
| Manufacturer | SpillTech |
Expert Insights
Frequently Asked Questions
Roof Leak Diverter 5'x5'
Do I need to buy straps and hose separately?
Yes. The 5x5 diverter panel is sold separately from the hanging straps (ALDSTRAPS, set of 4) and the 25-foot drain hose (ALDHOSES). For a complete installation you need: 1 diverter panel + 1 set of straps + 1 drain hose.

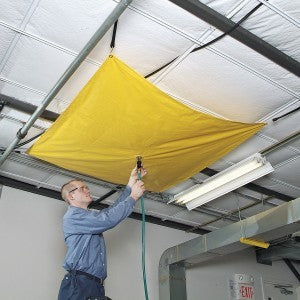

How do I hang the diverter from the ceiling?
Use the rubber hanging straps with steel hooks. Hook the straps to ceiling supports, exposed beams, drop ceiling grid, or sprinkler pipes. The straps stretch to accommodate different ceiling heights. Adjust the strap length so the diverter forms a slight funnel toward the drain outlet.
Can this diverter handle heavy water flow?
The vinyl-coated fabric and drain hose can handle moderate water flow from typical roof leaks. For very heavy flows, the 10x10-foot model (ALD1010S) provides more collection area. Position the drain hose to discharge into a large container or floor drain for continuous drainage.
Is the 5x5 or 10x10 size better for my facility?
The 5x5 size covers 25 square feet and is ideal for single-point leaks or smaller ceiling areas. The 10x10 covers 100 square feet and is better for larger leak areas or when the exact leak location is uncertain. When in doubt, go larger — you can always fold excess material.
Can I leave the diverter installed permanently?
Yes, the vinyl-coated fabric is designed for long-term deployment. However, inspect regularly for wear, especially at strap attachment points. The yellow color provides high visibility so workers are aware of the active leak area above.
Our Most Popular Product Lines
Absorbent Pads & Rolls
Marine Absorbents & Booms
Cross-Reference Guide
This product is compatible with applications that use the following part numbers:
- introRoof leak diverter system components and related part numbers:
- partsALD55SALD1010S (10x10 diverter)ALD1818S (pipe diverter)ALDSTRAPS (hanging straps)ALDHOSES (25 ft drain hose)
- noteSpillTech 5x5 Roof Leak Diverter panel. AbsorbentsOnline SKU: ALD55S. Requires ALDSTRAPS and ALDHOSES for complete installation.
