Storm Drain Filter Inserts & Guards

Storm Drain Filter Inserts & Guards | AbsorbentsOnline

Description: The Drain Filter Insert is made of a non-woven, polypropylene geotextile that is very absorbent and will not tear under normal use. The oil and sediment models will remove hydrocarbon...

5 Products Available

  • Family-Owned Since 1985
  • Ships from National Warehouse Network
  • Expert Support: (800) 869-9633

Collection: Storm Drain Filter Inserts & Guards

Description: The Drain Filter Insert is made of a non-woven, polypropylene geotextile that is very absorbent and will not tear under normal use. The oil and sediment models will remove hydrocarbons and sediment. The trash and debris model is designed to catch larger items. One size fits most drains.

Uses: Use to keep oil and other contaminants from entering storm drains. Effective at industrial facilities, construction sites, parking lots, drive-up locations and retail locations. Additional technical information on order page.

Storm Drain Filter Inserts & Guards

Quick Overview

  • Quick and easy installation
  • Heavy-duty geotextile fabric filter
  • Filters sand, trash and oil contaminants from stormwater flow
  • Ideal for industrial facilities, construction sites, and parking lots
  • Choose from 3 model catch basin insert options
Compare (0/5)

5 products

Keep Pollutants Out Of The Water System With Storm Drain Filters

Water is one of our most precious resources. If you work around chemicals or pollutants that could harm our water system, it is your duty to install storm drain filters throughout your operation. These will help keep pollutants from entering the storm drains, and thus, our water system.

Stormwater pollution has become a major concern both locally and on a national level.  These storm drain guards remove waste from stormwater before it can become a problem in the water system.

And there is no better place to find your storm drain filters than right here at AbsorbentsOnline. We have three great models to choose from, each of which is sure to do the job. We’ll break down the key differences among these below so you can pick the right filter guard for your needs.

The Three Different Storm Drain Guards We Offer

These storm drain guards are simple devices designed to fit most drain catch basins. They’re held in place by a metal grate, and effectively remove coarse sediments, oil, grease, litter, and debris from stormwater.

They work great in parking lots, which tend to be huge sources of pollution. Cars and trucks drip oil and grease onto the surface of the ground, which is carried into the catch basins by rainwater. This ultimately ends up in local streams, lakes, or groundwater aquifers.

It’s not just parking lots that are guilty of polluting water sources. These storm drain filters are essential in vehicle storage/service areas, construction sites, industrial plants, and anywhere else pollutants could be on the ground. Here are the three main types we have at AbsorbentsOnline:



Oil and Sediment ModelOil and Sediment PLUS ModelTrash and Debris Model

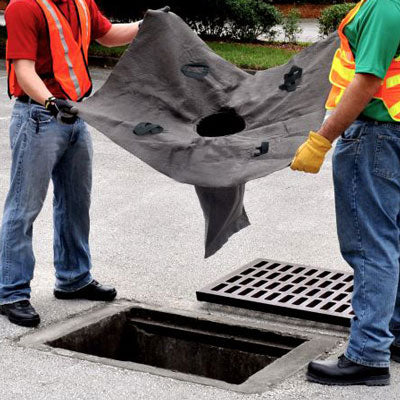

Same as plus model except no X-Tex Absorbent Filter Strip.drain guard installation
Click For Larger Image

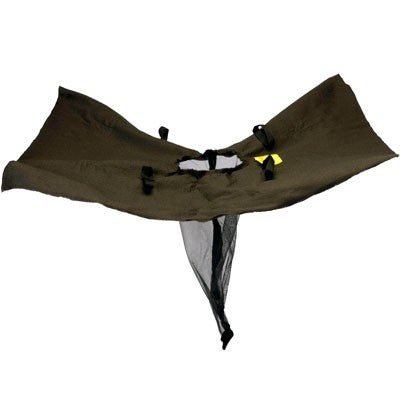

Ultra-DrainGuard, Trash and Debris Model
Click For Larger Image

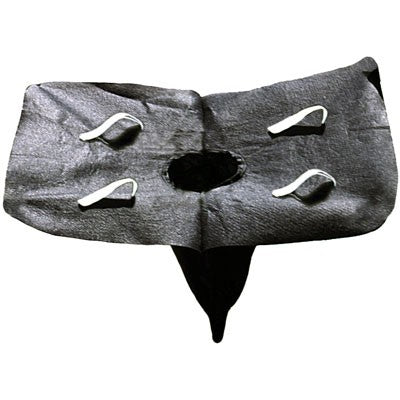

The Oil and Sediment Model has a geotextile outer material that removes oil and grease from water flow as it passes through the Drain Guard.The Oil and Sediment Model contains more X -Tex absorbent filter strips that removes oil and grease from water flow as it passes through the Drain Guard.The Trash and Debris Model is designed specifically to catch larger items such as cigarette butts, candy wrappers and paper goods.

x-tex drain insert filter



Learn more about X-Tex



If you are unsure which of these three storm drain guards is right for you, don’t hesitate to reach out - we’re a phone call away ready to assist you.

Technical Information On Our Storm Drain Filters

Specifications

 Oil & Sediment ModelOil & Sediment Plus ModelTrash & Debris Model
Part #:A9217U (1-Pack)A9219U (1-Pack)A9227U (1-Pack)
Dimensions:48" L x 36" W x 18"H
Inner Hole 12" Dia.
48" L x 36" W x 18" H
Inner Hole 12" Dia.
48" L x 36" W x 18" H
Inner Hole 12" Dia.
Weight:1 lbs.2 lbs.1 lbs.
Performance:Oil:  Up to .87 gallons
Sediment:  Up to 40 lbs.
Oil:  Up to 1.38 gallons
Sediment:  Up to 40 lbs.
1 cu. ft. (before reaching bypass ports)

* The total water flow rate through the insert in new condition is in excess of 500 gpm. The bypass rate is approximately 700 gpm.

Effectiveness Study on DrainGuards

Compliance Information On Our Storm Drain Filters

Helps comply with NPDES, 40 CFR 122.26 (1999)

Why Shop For Storm Drain Filter Guards At AbsorbentsOnline?

With almost four decades of experience in this industry, you can trust that we have your back with the products and resources you need to keep your business safe and compliant! These storm drain filter guards are just one of the many products you’ll find here at AbsorbentsOnline. Along with these, you’ll find other popular types of storm drain covers, including:

So, shop now or reach out if you have questions about which type of product is right for you. A real person is on the other end of the phone eager to help you stay safe and compliant - don’t be shy!

Description: The Drain Filter Insert is made of a non-woven, polypropylene geotextile that is very absorbent and will not tear under normal use. The oil and sediment models will remove hydrocarbons and sediment. The trash and debris model is designed to catch larger items. One size fits most drains.

Uses: Use to keep oil and other contaminants from entering storm drains. Effective at industrial facilities, construction sites, parking lots, drive-up locations and retail locations. Additional technical information on order page.
