IBC Outdoor Modular Spill Pallet, 5-Tote Model, Polyethylene
★★★★★ 5.0 out of 4 reviews · Google ReviewsRegular price
$11,423.97
$13,137.57
Sale price
$11,423.97
Regular price
$0.00
Save $1,713.60 (13%)
- IBC Outdoor Modular Spill Pallet, 5-Tote Model, Polyethylene — EPA SPCC & 40 CFR 264.175 compliant spill containment
- Heavy-duty construction — UV-stabilized polyethylene or steel; built for industrial environments
- Reliable sump capacity — captures leaks, drips & spills to protect your facility and the environment
- FREE Shipping — ships to the Continental US
FREE Shipping — Continental US
Est. delivery:5-10business days - Ships from multiple US warehouses
Request A Quote
Fill out the form below and we’ll respond within 1 business day.
Share this product
Product Overview
The IBC Outdoor Modular Spill Pallet, 5-Tote Model, Polyethylene provides secondary containment specifically designed for IBC totes (intermediate bulk containers). With adequate sump capacity to capture the full contents of a tote in case of catastrophic failure, this pallet meets EPA SPCC and 40 CFR 264.175 requirements.
Built from chemical-resistant polyethylene with integrated forklift pockets for easy positioning. The removable grating platform allows quick inspection and cleaning of the containment sump.
Technical Specifications
| SKU | A1168U |
|---|---|
| Tote Capacity | 5 IBC totes |
| Included Components | 5 pallets + 0 expansion tanks + outdoor enclosure |
| Overall Dimensions | 312" x 62" x 79" |
| Pallet Dimensions | 62" x 62" x 8.75" each |
| Total Sump Capacity | 375 gallons |
| Pallet Sump Capacity | 75 gallons each |
| Material | Polyethylene (PE) |
| Indoor / Outdoor | Outdoor (with rain enclosure) |
| Drain Included | No |
| Fork Pockets | Yes |
| Load Capacity | 9,000 lbs (UDL) |
| Weight | 2,248 lbs |
| Compliance | EPA 40 CFR 264.175, SPCC |
| Manufacturer | UltraTech |
Expert Insights

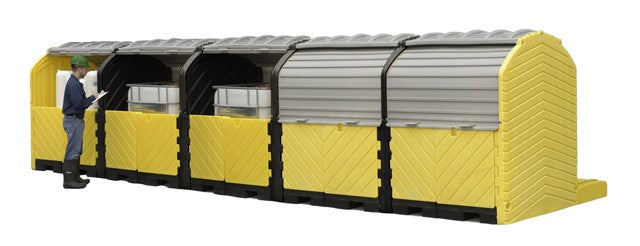

The 5-tote outdoor modular spill pallet is the largest pre-configured system in UltraTech's outdoor IBC containment line, stretching 26 feet long with a full polyethylene rain enclosure protecting five containment pallets. At 2,248 lbs empty, this is a major installation requiring a prepared, level surface and equipment capable of handling the combined weight of the system plus five loaded IBC totes. Like the indoor 5-tote model, no expansion tanks are included—the five pallets connect directly for 375 gallons of sump capacity, but additional Expansion Tanks (A1124U) can be inserted between pallets if more volume is required. Facilities with covered storage should consider the lighter, less expensive 5-Tote Indoor model (A1128U) instead.
Frequently Asked Questions
Does the 5-tote outdoor model include expansion tanks?
No, it includes 5 pallets and an outdoor enclosure only. Tanks sold separately.
How long is the 5-tote outdoor system when assembled?
312 inches overall length, which is 26 feet.
What is the total weight of this system?
2,248 lbs empty, making it the heaviest model in the modular line.
Can expansion tanks be added to increase sump capacity?
Yes, purchase Expansion Tanks (A1124U) and Bulkhead Fittings (A1117U).
Is the 5-tote outdoor model SPCC compliant?
Yes, it meets both EPA 40 CFR 264.175 and SPCC requirements.
Our Most Popular Product Lines
Absorbent Pads & Rolls
Marine Absorbents & Booms
Cross-Reference Guide
This product is compatible with applications that use the following part numbers:
- introThis 5-tote outdoor model is the largest outdoor configuration in UltraTech's modular IBC spill containment system. Related products include:
- parts{"sku"=>"A1128U", "name"=>"5-Tote Indoor Modular Spill Pallet"}{"sku"=>"A1165U", "name"=>"2-Tote Outdoor Modular Spill Pallet"}{"sku"=>"A1166U", "name"=>"3-Tote Outdoor Modular Spill Pallet"}{"sku"=>"A1167U", "name"=>"4-Tote Outdoor Modular Spill Pallet"}{"sku"=>"A1118U", "name"=>"Required Assembly Kit"}{"sku"=>"A1124U", "name"=>"Expansion Tank Only"}{"sku"=>"A9630U", "name"=>"Spill Pallet Only (replacement)"}{"sku"=>"A1117U", "name"=>"Bulkhead Fittings (2-pack)"}
- noteNo expansion tanks are included. Add A1124U tanks for extra sump capacity. For indoor use, the 5-Tote Indoor model (A1128U) provides the same 375-gallon capacity at much lower weight and cost.
