IBC Outdoor Modular Spill Pallet, 4-Tote Model, Polyethylene, No Drain
★★★★★ 5.0 out of 4 reviews · Google ReviewsRegular price
$10,206.97
$11,738.02
Sale price
$10,206.97
Regular price
$0.00
Save $1,531.05 (13%)
- IBC Outdoor Modular Spill Pallet, 4-Tote Model, Polyethylene, No Drain — EPA SPCC & 40 CFR 264.175 compliant spill containment
- Heavy-duty construction — UV-stabilized polyethylene or steel; built for industrial environments
- Reliable sump capacity — captures leaks, drips & spills to protect your facility and the environment
- FREE Shipping — ships to the Continental US
FREE Shipping — Continental US
Est. delivery:5-10business days - Ships from multiple US warehouses
Request A Quote
Fill out the form below and we’ll respond within 1 business day.
Share this product
Product Overview

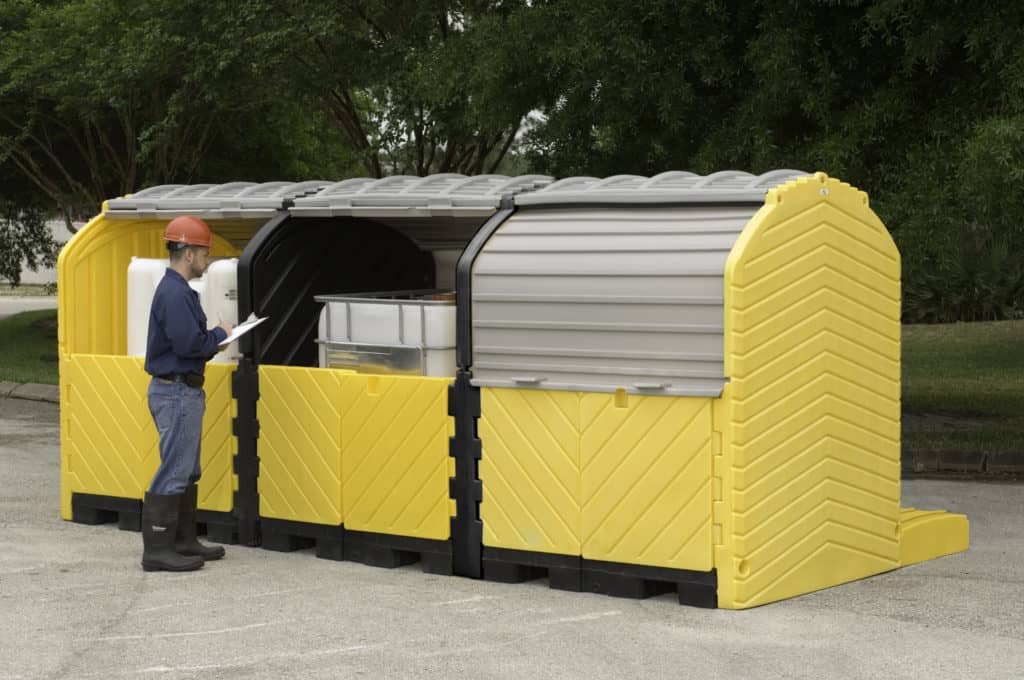

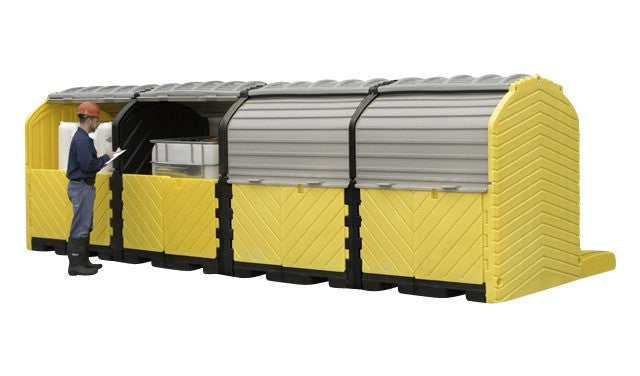

The IBC Outdoor Modular Spill Pallet, 4-Tote Model, Polyethylene, No Drain provides secondary containment specifically designed for IBC totes (intermediate bulk containers). With adequate sump capacity to capture the full contents of a tote in case of catastrophic failure, this pallet meets EPA SPCC and 40 CFR 264.175 requirements.
Built from chemical-resistant polyethylene with integrated forklift pockets for easy positioning. The removable grating platform allows quick inspection and cleaning of the containment sump.
Technical Specifications
| SKU | A1167U |
|---|---|
| Tote Capacity | 4 IBC totes |
| Included Components | 4 pallets + 1 expansion tank + outdoor enclosure |
| Overall Dimensions | 250" x 93" x 79" |
| Pallet Dimensions | 62" x 62" x 8.75" each |
| Expansion Tank Dimensions | 61" x 31" x 12.5" |
| Total Sump Capacity | 365 gallons |
| Pallet Sump Capacity | 75 gallons each |
| Expansion Tank Capacity | 65 gallons |
| Material | Polyethylene (PE) |
| Indoor / Outdoor | Outdoor (with rain enclosure) |
| Drain Included | No |
| Fork Pockets | Yes |
| Load Capacity | 9,000 lbs (UDL) |
| Weight | 1,903 lbs |
| Compliance | EPA 40 CFR 264.175, SPCC |
| Manufacturer | UltraTech |
Expert Insights
The 4-tote outdoor modular spill pallet is designed for high-capacity outdoor IBC storage, combining four containment pallets and one expansion tank under a full polyethylene rain enclosure for 365 gallons of weather-protected sump capacity. At over 20 feet long and nearly 8 feet wide, this is a substantial installation that requires careful site planning and a level, load-bearing surface to support its 1,903-lb empty weight plus four loaded IBC totes. The single expansion tank can be supplemented with additional A1124U tanks and A1117U bulkhead fittings if greater sump volume is needed. For covered or indoor facilities, the equivalent 4-Tote Indoor model (A1127U) delivers the same containment at roughly one-third the weight and cost.
Frequently Asked Questions
How many expansion tanks are included with the 4-tote outdoor model?
One expansion tank (65 gal) is included between the four pallets.
What is the total footprint of this outdoor 4-tote system?
250" x 93" x 79" overall (approximately 20.8 ft x 7.75 ft x 6.6 ft).
How much does the 4-tote outdoor system weigh?
1,903 lbs total, including pallets, expansion tank, and rain enclosure.
Can I increase the sump capacity beyond 365 gallons?
Yes, add Expansion Tanks (A1124U) between pallets for extra capacity.
Is the rain enclosure removable if I move the system indoors?
The enclosure is designed as part of the system; indoor models are separate.
Our Most Popular Product Lines
Absorbent Pads & Rolls
Marine Absorbents & Booms
Cross-Reference Guide
This product is compatible with applications that use the following part numbers:
- introThis 4-tote outdoor model is part of UltraTech's modular IBC spill containment system with integrated weather protection. Related products include:
- parts{"sku"=>"A1127U", "name"=>"4-Tote Indoor Modular Spill Pallet"}{"sku"=>"A1165U", "name"=>"2-Tote Outdoor Modular Spill Pallet"}{"sku"=>"A1166U", "name"=>"3-Tote Outdoor Modular Spill Pallet"}{"sku"=>"A1168U", "name"=>"5-Tote Outdoor Modular Spill Pallet"}{"sku"=>"A1118U", "name"=>"Required Assembly Kit"}{"sku"=>"A1124U", "name"=>"Expansion Tank Only"}{"sku"=>"A9630U", "name"=>"Spill Pallet Only (replacement)"}{"sku"=>"A1117U", "name"=>"Bulkhead Fittings (2-pack)"}
- noteFor indoor storage, the 4-Tote Indoor model (A1127U) provides identical 365-gallon containment without the rain enclosure at significantly lower cost and weight.
