IBC Indoor Modular Spill Pallet, 5-Tote Model, Polyethylene
★★★★★ 5.0 out of 4 reviews · Google ReviewsRegular price
$4,420.97
$5,084.12
Sale price
$4,420.97
Regular price
$0.00
Save $663.15 (13%)
- IBC Indoor Modular Spill Pallet, 5-Tote Model, Polyethylene — EPA SPCC & 40 CFR 264.175 compliant spill containment
- Heavy-duty construction — UV-stabilized polyethylene or steel; built for industrial environments
- Reliable sump capacity — captures leaks, drips & spills to protect your facility and the environment
- FREE Shipping — ships to the Continental US
FREE Shipping — Continental US
Est. delivery:5-10business days - Ships from multiple US warehouses
Request A Quote
Fill out the form below and we’ll respond within 1 business day.
Share this product
Product Overview

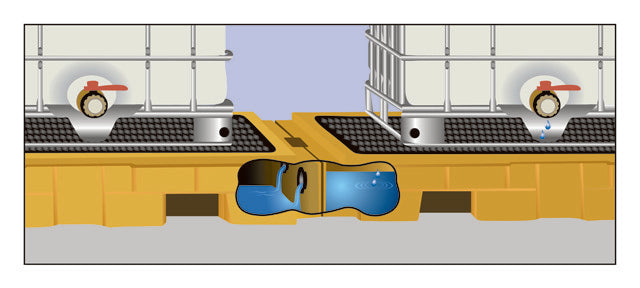

The IBC Indoor Modular Spill Pallet, 5-Tote Model, Polyethylene provides secondary containment specifically designed for IBC totes (intermediate bulk containers). With adequate sump capacity to capture the full contents of a tote in case of catastrophic failure, this pallet meets EPA SPCC and 40 CFR 264.175 requirements.
Built from chemical-resistant polyethylene with integrated forklift pockets for easy positioning. The removable grating platform allows quick inspection and cleaning of the containment sump.
Technical Specifications
| SKU | A1128U |
|---|---|
| Tote Capacity | 5 IBC totes |
| Included Components | 5 pallets + 0 expansion tanks |
| Overall Dimensions | 248" x 62" x 8.75" |
| Pallet Dimensions | 62" x 62" x 8.75" each |
| Total Sump Capacity | 375 gallons |
| Pallet Sump Capacity | 75 gallons each |
| Material | Polyethylene (PE) |
| Indoor / Outdoor | Indoor (open top) |
| Drain Included | No |
| Fork Pockets | Yes |
| Load Capacity | 9,000 lbs (UDL) |
| Weight | 625 lbs |
| Compliance | EPA 40 CFR 264.175, SPCC |
| Manufacturer | UltraTech |
Expert Insights

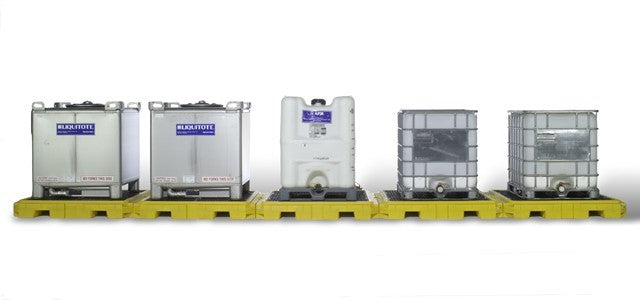

The 5-tote indoor modular spill pallet is the largest pre-configured indoor system in UltraTech's modular IBC containment line, consisting of five connected pallets with a combined 375-gallon sump capacity. Unlike the 2- and 3-tote models, this configuration ships without expansion tanks between pallets—the five pallets connect directly to each other, keeping the footprint compact. If your facility needs additional sump volume beyond 375 gallons, Expansion Tanks (A1124U) can be purchased separately and inserted between pallets using Bulkhead Fittings (A1117U). The Assembly Kit (A1118U) is still required to join the pallet units and must be ordered separately.
Frequently Asked Questions
Does the 5-tote indoor model include any expansion tanks?
No, it includes 5 pallets only. Expansion tanks can be added separately.
How is 375 gallons of sump capacity achieved with pallets only?
Five pallets at 75 gallons each provide the full 375-gallon capacity.
Can I add expansion tanks between the pallets for extra capacity?
Yes, purchase Expansion Tanks (A1124U) and Bulkhead Fittings (A1117U).
Is the Assembly Kit still required for a 5-pallet-only configuration?
Yes, the Assembly Kit (A1118U) is required to connect the pallets together.
What is the maximum IBC tote weight this system supports?
Each pallet supports 9,000 lbs UDL, suitable for fully loaded IBC totes.
Our Most Popular Product Lines
Absorbent Pads & Rolls
Marine Absorbents & Booms
Cross-Reference Guide
This product is compatible with applications that use the following part numbers:
- introThis 5-tote indoor model is the largest indoor configuration in UltraTech's modular IBC spill containment system. Related products include:
- parts{"sku"=>"A1125U", "name"=>"2-Tote Indoor Modular Spill Pallet"}{"sku"=>"A1126U", "name"=>"3-Tote Indoor Modular Spill Pallet"}{"sku"=>"A1127U", "name"=>"4-Tote Indoor Modular Spill Pallet"}{"sku"=>"A1168U", "name"=>"5-Tote Outdoor Modular Spill Pallet"}{"sku"=>"A1118U", "name"=>"Required Assembly Kit"}{"sku"=>"A1124U", "name"=>"Expansion Tank Only"}{"sku"=>"A9630U", "name"=>"Spill Pallet Only (replacement)"}{"sku"=>"A1117U", "name"=>"Bulkhead Fittings (2-pack)"}
- noteNo expansion tanks are included—add A1124U tanks between pallets for additional sump capacity. The Assembly Kit (A1118U) is required for connecting pallets.
