Bulkhead Fittings (2) for Modular Spill Pallets
★★★★★ 5.0 out of 4 reviews · Google ReviewsRegular price
$59.97
$68.97
Sale price
$59.97
Regular price
$0.00
Save $9.00 (13%)
- Bulkhead Fittings (2) for Modular Spill Pallets — EPA SPCC & 40 CFR 264.175 compliant spill containment
- Heavy-duty construction — UV-stabilized polyethylene or steel; built for industrial environments
- Reliable sump capacity — captures leaks, drips & spills to protect your facility and the environment
- FREE Shipping — ships to the Continental US
FREE Shipping — Continental US
Est. delivery:5-10business days - Ships from multiple US warehouses
Request A Quote
Fill out the form below and we’ll respond within 1 business day.
Share this product
Product Overview
The Bulkhead Fittings (2) for Modular Spill Pallets is a drum spill containment pallet providing reliable secondary containment for stored drums. Constructed from chemical-resistant polyethylene, it captures leaks, drips, and spills to keep your facility floor clean and EPA compliant.
Designed to meet EPA 40 CFR 264.175 requirements for secondary containment of hazardous materials storage. The removable grating allows easy cleaning, and the low-profile design makes drum loading simple with a pallet jack or forklift.
Technical Specifications
| SKU | A1117U |
|---|---|
| Description | 1.25" Bulkhead Fittings, set of 2 |
| Dimensions | 3" x 3" x 3" |
| Material | Polyethylene |
| Weight | 3 lbs |
| Quantity | 2 fittings per package |
| Compatibility | All UltraTech Modular IBC Spill Pallets |
| Purpose | Connect pallets to expansion tanks |
| Manufacturer | UltraTech |
Expert Insights

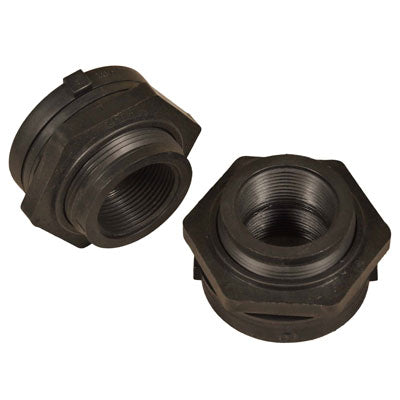

These 1.25-inch polyethylene bulkhead fittings are the connection points that allow liquid to flow between modular spill pallets and expansion tanks in UltraTech's IBC containment system. Each package contains two fittings, which is enough to connect one expansion tank to the system. The standard modular pallet kits already include the necessary bulkhead fittings for the included components—these replacement fittings are primarily needed when adding extra expansion tanks or pallets to an existing system. Installation requires the Assembly Kit (A1118U), which provides the hole saw and tightening tools for a proper, leak-free connection.
Frequently Asked Questions
What are the bulkhead fittings used for?
They connect modular spill pallets to expansion tanks, allowing liquid flow.
How many bulkhead fittings come in a package?
Each package includes 2 bulkhead fittings (1.25-inch size).
Do I need these if I already bought an assembly kit?
The assembly kit includes bulkhead fittings; buy extras for additional tanks.
Are these compatible with all modular spill pallet models?
Yes, they fit all UltraTech modular IBC spill pallet configurations.
Do I need special tools to install bulkhead fittings?
The Assembly Kit (A1118U) includes the hole saw and tools needed.
Our Most Popular Product Lines
Absorbent Pads & Rolls
Marine Absorbents & Booms
Cross-Reference Guide
This product is compatible with applications that use the following part numbers:
- introThese bulkhead fittings are an accessory for UltraTech's modular IBC spill containment system. They are used with:
- parts{"sku"=>"A1118U", "name"=>"Required Assembly Kit (includes tools for installation)"}{"sku"=>"A1124U", "name"=>"Expansion Tank Only (connects via bulkhead fittings)"}{"sku"=>"A9630U", "name"=>"Spill Pallet Only (connects via bulkhead fittings)"}{"sku"=>"A1125U", "name"=>"2-Tote Indoor Modular Spill Pallet"}{"sku"=>"A1126U", "name"=>"3-Tote Indoor Modular Spill Pallet"}{"sku"=>"A1165U", "name"=>"2-Tote Outdoor Modular Spill Pallet"}{"sku"=>"A1166U", "name"=>"3-Tote Outdoor Modular Spill Pallet"}
- noteBulkhead fittings are included with the standard modular pallet kits. Purchase additional fittings when adding extra expansion tanks or pallets to an existing system.
