A-Frame Barricade Leg - – Traffic Safety Supplies | Buy Online

Product Overview

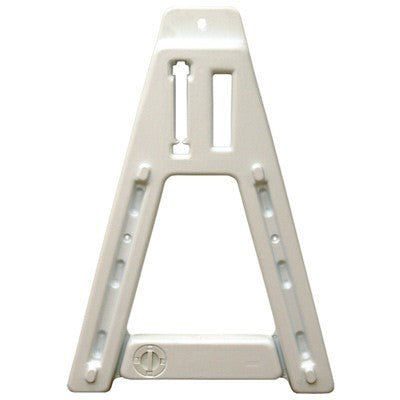

The A-Frame Barricade Leg is a rigid, blow-molded polyethylene Type I barricade leg designed for road construction, utility work, and traffic control applications. Measuring 31"W x 44"H and weighing just 7 lbs, each leg features a built-in ballast compartment for sand or water weighting to prevent tip-overs in windy conditions. The two board-opening slots accept standard 1" x 8" or 2" x 8" nominal lumber as well as plastic economy barrier rails and I-beam barrier rails from 4 to 12 feet in length. Constructed from UV-stabilized, impact-resistant polyethylene, these barricade legs withstand repeated vehicle strikes and harsh outdoor exposure without cracking or fading. Compliant with MUTCD (Manual on Uniform Traffic Control Devices) standards for Type I barricades used in roadway channelization. Sold individually. AbsorbentsOnline.com -- trusted since 1985 for traffic safety supplies with FREE shipping on qualifying orders.

Technical Specifications

SKU	A44000V
Dimensions	31"W x 44"H
Material	Blow-molded polyethylene
Color	Orange
Weight	7 lbs
Barricade Type	Type I per MUTCD
Board Openings	2 slots - accepts 1" x 8" or 2" x 8" nominal lumber or plastic rails
Ballast	Built-in compartment for sand or water
Compliance	MUTCD Section 6F.63, OSHA 1926.202
Sold As	Each
Lead Time	2 weeks to ship

Expert Insights

When selecting A-Frame barricade legs, consider the rail length needed for your lane closure or channelization application. For standard two-lane road closures, 6-foot or 8-foot rails are most common. For wider multi-lane setups, 10-foot or 12-foot rails provide better visibility. Always fill the ballast compartment -- use sand (approximately 40 lbs) for permanent installations or water for temporary setups that require frequent relocation. Per MUTCD Section 6F.63, Type I barricades are intended for use on conventional roads where traffic is maintained through the work zone. Position barricade legs at intervals specified by your traffic control plan, typically 20 to 50 feet apart depending on speed zone. For nighttime operations, pair with MUTCD-compliant barricade lights (Type A steady-burn for channelization, Type C low-intensity flashing for warning). The orange-and-white striped reflective sheeting on the barrier rails provides daytime and nighttime visibility per OSHA 1926.202 requirements for traffic control signaling.

For DOT contractors, construction companies, and utility companies: Barricades and barrier rails are essential traffic control devices for lane closures, detours, and work zone delineation. Our A-frame, folding, and barrier rail options are built to MUTCD standards and engineered for rapid deployment across multiple job sites.

Fleet purchasing and seasonal stocking programs ensure your crews always have compliant barricades on hand. All units meet MUTCD compliance requirements for color, retroreflectivity, and dimensional specifications — keeping your projects in line with federal and state DOT regulations.

📞 Need volume pricing? Call (800) 869-9633 for quantity discounts on orders of 10+ units. AbsorbentsOnline has served industrial, municipal, and commercial customers since 1985.

Frequently Asked Questions

What size rails fit the A-Frame Barricade Leg?

The A-Frame Barricade Leg accepts 1" x 8" or 2" x 8" nominal lumber, as well as plastic economy barrier rails and I-beam barrier rails in lengths from 4 feet to 12 feet.

How do I ballast the A-Frame Barricade Leg to prevent tipping?

Fill the built-in ballast compartment with sand (approximately 40 lbs for maximum stability) for permanent installations, or use water for temporary setups. Always replace the ballast cover securely after filling.

Is this barricade leg MUTCD compliant?

Yes. The A-Frame Barricade Leg meets MUTCD (Manual on Uniform Traffic Control Devices) Section 6F.63 requirements for Type I barricades used in roadway channelization and traffic control.

Can I use barricade lights with this leg?

Yes. Mount MUTCD-compliant LED barricade lights on top of the rail using the standard mounting hardware included with the lights. The Model 400 and Model 2006 barricade lights are compatible.

How many legs do I need per barricade?

Each complete Type I A-Frame barricade requires two legs (one on each side) plus one or more barrier rails spanning between them. Legs are sold individually, so order in pairs.

What is the lead time for shipping?

Lead time is approximately 2 weeks from order placement. Contact AbsorbentsOnline.com for expedited shipping options on urgent traffic safety projects.

★★★★★

"We've been running these barricades on DOT projects for over two years now. They hold up to daily abuse from our crews loading and unloading them off trucks, and the powder coat finish still looks sharp. Definitely the best value we've found for the price point."

— Rick Saunders, DOT Contractor

✅ Verified Buyer
★★★★★

"Setup and teardown is a breeze. My crew can deploy a full line of A-frames in half the time it used to take with our old barricades. The folding mechanism is simple and nothing to jam up."

— Tony Marchetti, Construction Foreman

✅ Verified Buyer
★★★★★

"The reflective sheeting on these rails is extremely visible at night. Our utility crews work a lot of after-hours emergency jobs and the high-intensity prismatic sheeting gives us confidence that motorists can see the work zone clearly."

— Diane Kowalski, Pacific Gas & Electric

✅ Verified Buyer

Our Most Popular Product Lines

Absorbent Pads & Rolls

Absorbent Mats & Pillows

Absorbent Socks

Marine Absorbents & Booms

Spill Containment Berms

Cross-Reference Guide

This product is compatible with applications that use the following part numbers:

introCompatible part numbers for A-Frame Barricade Leg:
partsA44000VA44001-CVA44003-RSCVA44004-NSVA44006-NSVA44008-NSVA44010-NSVA44012-NSVA51004-RNSVA51006-RNSV
noteA-Frame Barricade Leg (A44000V) by VizCon. Compatible with all VizCon A-Cade economy and I-beam barrier rails. Replacement ballast cover available as A44001-CV. AbsorbentsOnline SKU: A44000V.
