90-Gal. Manual Close Yellow Fire Cabinet w/ Legs
★★★★★ 5.0 out of 4 reviews · Google ReviewsRegular price
$2,997.97
$3,447.67
Sale price
$2,997.97
Regular price
$0.00
Save $449.70 (13%)
- 18-gauge double-walled steel —1½" air insulation between walls
- Meets OSHA & NFPA Code 30 —compliant for flammable & combustible liquid storage
- Flammable liquid storage —tower design on welded legs
- FREE Shipping — ships to the Continental US
FREE Shipping — Continental US
Est. delivery:7-12business days - Ships from multiple US warehouses
Request A Quote
Fill out the form below and we’ll respond within 1 business day.
Share this product
Product Overview

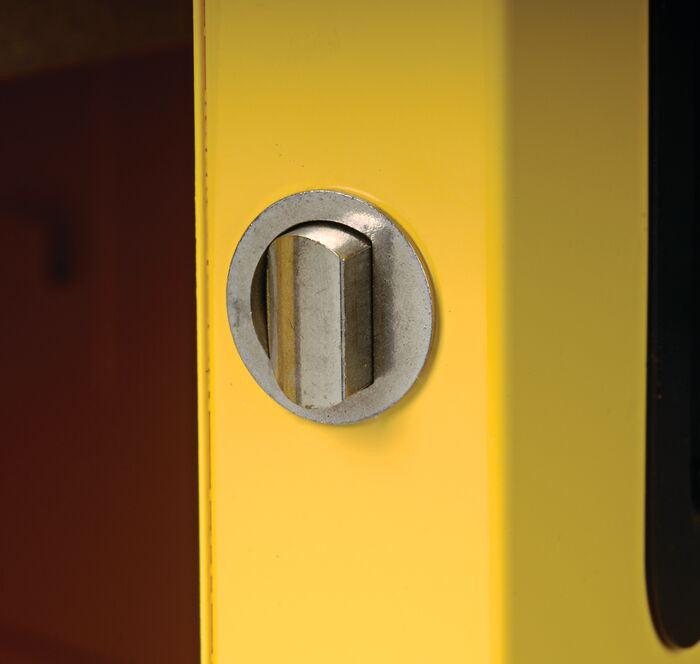

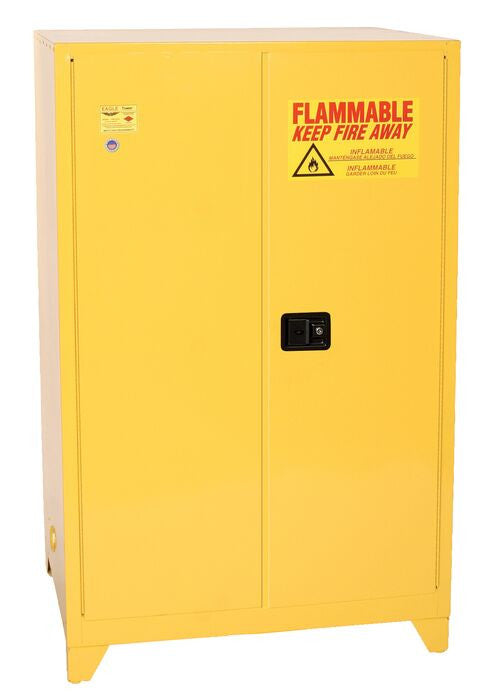

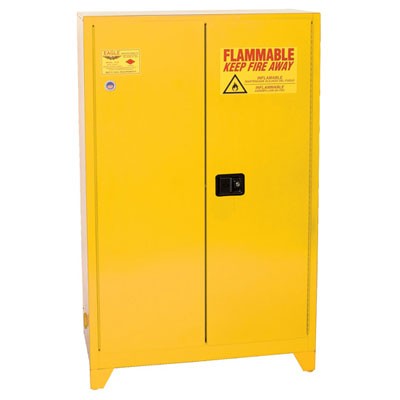

This Eagle 90-gallon manual-close flammable safety cabinet (Model A1992XLEGSE) is the largest capacity paint and ink storage cabinet available in a manual-close configuration, offering maximum storage at the lowest cost per gallon of capacity. The manual doors feature a three-point self-latching mechanism for secure closure.

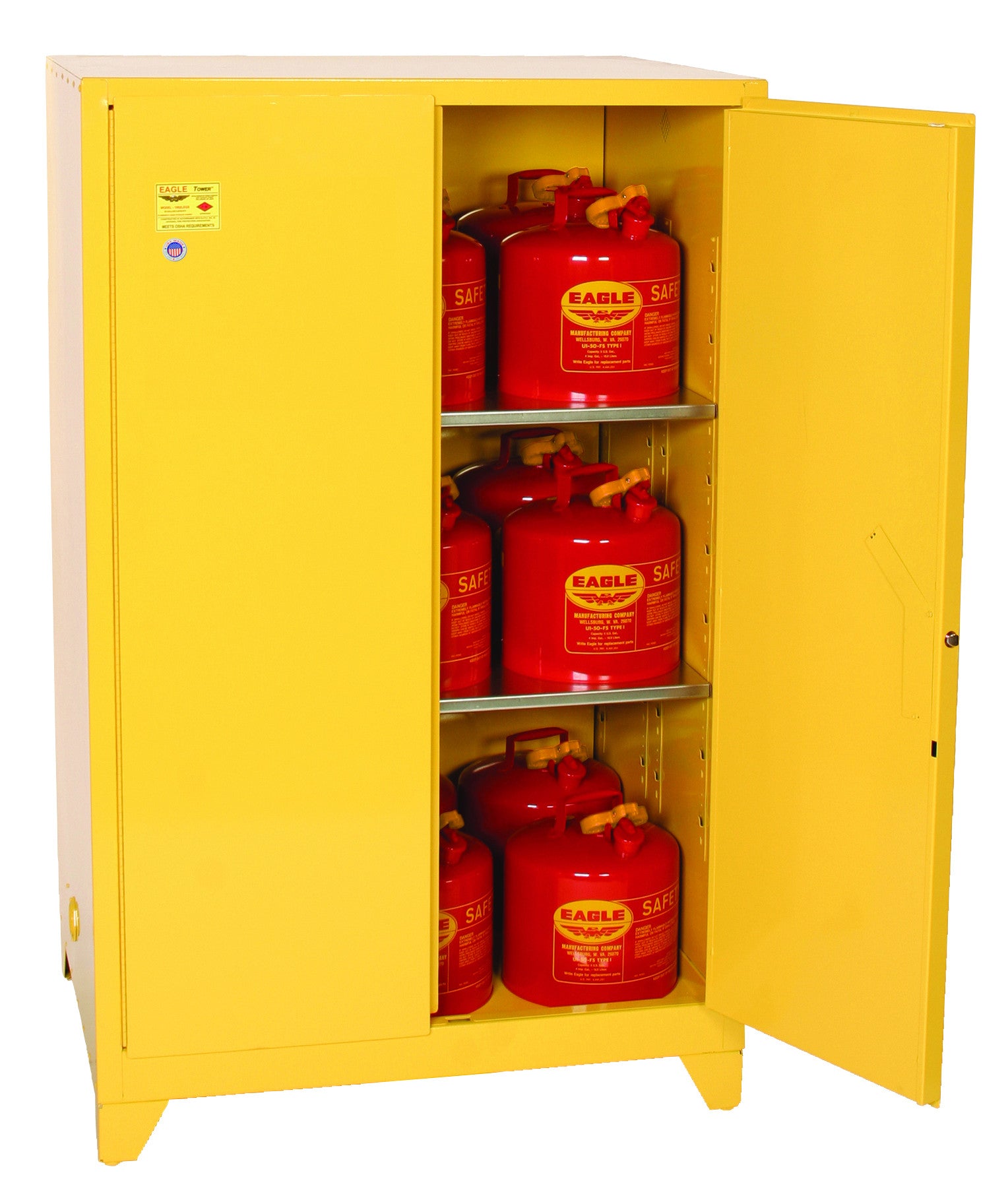

Built with 18-gauge double-wall welded steel construction with 1-1/2 inch air insulation, this cabinet meets NFPA 30 and OSHA 29 CFR 1910.106 requirements. It is both FM Approved and UL Listed. The cabinet features two manual-close doors, two adjustable shelves, a 2-inch leak-proof sump, and a built-in grounding connection. Dimensions are 43"W x 34"D x 69"H with a shipping weight of 490 lbs.
The 90-gallon capacity exceeds the 60-gallon single-cabinet limit under NFPA 30 for Class I/II liquids — verify with your fire marshal for your specific classification. At 490 lbs, plan for equipment-assisted delivery and placement. The manual-close version saves cost vs. self-closing while providing identical fire-rated construction. Manufactured by Eagle Manufacturing, available from AbsorbentsOnline (trusted since 1985) with FREE shipping.
Technical Specifications
| SKU | A1992XLEGSE |
|---|---|
| Manufacturer | Eagle Manufacturing |
| Capacity | 90 Gallons |
| Door Type | Manual Close |
| Number of Doors | 2 |
| Color | Yellow |

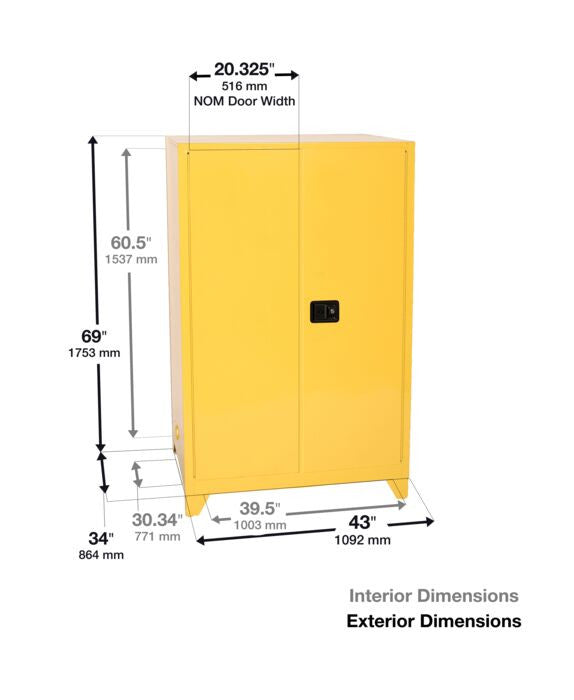

| Dimensions (WxDxH) | 43" x 34" x 69" |
| Shipping Weight | 490 lbs |
| Adjustable Shelves | 2 |
| Construction | 18-Gauge Double-Wall Welded Steel |
| Air Insulation | 1-1/2 Inch |
| Sump Capacity | 2-Inch Leak-Proof |
| Grounding | Built-In Grounding Connection |
| Compliance | NFPA 30, OSHA 29 CFR 1910.106, FM Approved, UL Listed |
Expert Insights
The 90-gallon manual-close cabinet is the most cost-effective option for high-volume paint and ink storage. Like the self-closing version, this exceeds the 60-gallon limit for standard flammable liquids under NFPA 30 — it is intended for paint, ink, and Class IIIB combustible liquids. Confirm your materials qualify before purchasing.
Without the self-closing mechanism, operator discipline becomes the critical safety factor. At 90 gallons, leaving doors open during a fire event exposes the maximum possible volume of stored materials. If your facility has multiple users accessing this cabinet, strongly consider the self-closing upgrade.
The manual-close version weighs 490 lbs vs. 494 lbs for the self-closing model — the weight difference is negligible, so the self-close mechanism adds minimal structural impact. The cost savings are the primary advantage of manual-close at this size.
Placement considerations: the 43"x34" footprint requires substantial floor space. Ensure 36" minimum clearance in front (NFPA 30), plus adequate aisle width. The 490-lb weight requires a floor rating of at least 50 PSF concentrated load on the cabinet footprint.
Some jurisdictions classify 90-gallon cabinets differently than 60-gallon models in fire code calculations. Your fire prevention plan and Hazmat inventory may need updating when adding a 90-gallon cabinet. Consult your fire marshal and insurance carrier before installation.
Safety Cabinets in Action
Manufacturing plants and maintenance shops position tower-style flammable cabinets along production lines where workers need quick access to solvents, thinners, and cleaning agents. The elevated design keeps containers at waist height for ergonomic dispensing and allows spill cleanup beneath the cabinet without moving it.
Purchased by safety managers, facility directors, lab managers, EHS coordinators, warehouse supervisors, and compliance officers. All cabinets are manufactured in the USA with corrosion-resistant powder coating and arrive fully assembled with adjustable shelves.
Frequently Asked Questions
90-Gal. Manual Close Yellow Fire Cabinet w/ Legs
Is the manual-close 90-gallon cabinet as safe as the self-closing version?
Both models have identical fire-rated construction — same 18-gauge double-wall steel, same FM/UL ratings. The only difference is door closure. The self-closing mechanism provides automatic closure during a fire (fusible link at 165°F). Manual-close relies on the operator to keep doors shut. At 90-gallon capacity, most safety professionals recommend self-closing.
What types of liquids can I store in a 90-gallon cabinet?
The 90-gallon rating is classified for paint, ink, and Class IIIB combustible liquids. For Class I and II flammable liquids, NFPA 30 limits individual cabinets to 60 gallons. If your primary storage needs are Class I solvents like acetone, MEK, or toluene, a 60-gallon cabinet is the compliant choice.
How do I choose between the 60-gallon and 90-gallon cabinet?
Choose 60-gallon if storing Class I/II flammable liquids (solvents, thinners). Choose 90-gallon if storing paint, ink, or Class IIIB combustible liquids that qualify for the higher capacity. The 90-gallon model also has a larger footprint (43"x34" vs 31"x31") and weighs 126 lbs more. Cost per gallon of capacity is lower on the 90-gallon.
Can I save money by choosing manual-close at 90-gallon capacity?
Yes, the manual-close version costs less than self-closing. However, at 90-gallon capacity, the cost savings should be weighed against risk — this is the maximum volume in a single cabinet, and automatic door closure provides meaningful fire protection. If budget is the constraint, the manual-close still meets all NFPA 30 and OSHA requirements.
What happens if I exceed the 180-gallon fire area limit?
Exceeding 180 gallons in safety cabinets within a fire area requires a dedicated inside flammable storage room per NFPA 30. This room has specific requirements: fire-rated walls, self-closing fire door, explosion-proof ventilation, and liquid-tight sill. Building a storage room is significantly more expensive than adding another safety cabinet in a separate fire area.
Does this cabinet need ventilation?
NFPA 30 does not require cabinet ventilation. The cabinets come with two capped vent openings (one on each side). If you connect ductwork for ventilation, it must be routed to a safe exterior location and the duct must be fire-rated. Most facilities leave the vents capped unless required by local code or storing particularly volatile materials.
What Our Customers Say
Real reviews from the facilities, field crews, and agencies that count on us.
-
-
The tower design is perfect for our production floor. Having the solvents at waist height means no bending over, and the legs make it easy to see and clean up any drips underneath. Bought three for different stations and every one arrived in perfect condition. Great product.
-
Needed compliant safety storage for our facility expansion and AbsorbentsOnline had the best prices we found anywhere. The cabinets are well-built, arrived damage-free, and our compliance team had zero issues during the fire marshal walkthrough. We’ll be ordering more as we expand additional areas. The customer service team was also very responsive when we had questions about which sizes to order.
Our Most Popular Product Lines
Absorbent Pads & Rolls
Marine Absorbents & Booms
Cross-Reference Guide
This product is compatible with applications that use the following part numbers:
- introThe Eagle 90-gallon manual-close cabinet (A1992XLEGSE) is the most cost-effective high-capacity paint and ink storage solution. Compare all sizes and door types below.
- partsA9010XLEGSE - 90-Gal Self-Closing (same capacity, auto-close doors)A6010XLEGSE - 60-Gal Self-Closing (max for Class I/II flammables)A1962XLEGSE - 60-Gal Manual CloseA4510XLEGSE - 45-Gal Self-ClosingA1947XLEGSE - 45-Gal Manual CloseA3010XLEGSE - 30-Gal Self-ClosingA1932XLEGSE - 30-Gal Manual CloseA1905XLEGSE - 16-Gal Self-ClosingA1906XLEGSE - 16-Gal Manual CloseA1924XLEGSE - 12-Gal Self-ClosingA1925XLEGSE - 12-Gal Manual Close
- noteAt 90-gallon capacity, most safety professionals recommend the self-closing upgrade for automatic fire protection. Manual-close saves cost but requires operator discipline. All cabinets share the same 18-gauge double-wall steel construction.
