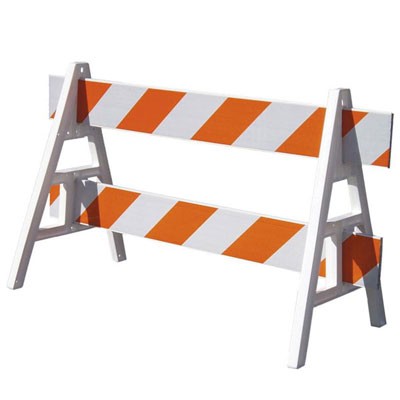

8' Plastic Economy Barrier Rail
★★★★★ 5.0 out of 4 reviews · Google ReviewsFill out the form below and we’ll respond within 1 business day.
Share this product
Product Overview
Technical Specifications
| SKU | A51006-RNSV (Non-sheeted), A51106-REG1RV (1-Side EG), A51206-REG2V (2-Sides EG), A51106-RFHIP1RV (1-Side HI), A51206-RFHIP2V (2-Sides HI), A51106-RDG1RV (1-Side DG), A51206-RDG2V (2-Sides DG) |
|---|---|
| Length | 8 feet |
| Material | Heavy-duty plastic with hollow cell core |
| Color | Orange with white reflective striping (sheeted versions) |
| Weight | 8 lbs |
| Sheeting Options | Non-sheeted, Engineer Grade (EG), High-Intensity Prismatic (HIP), Diamond Grade (DG) |
| Sheeting Sides | 1-side or 2-side options available |

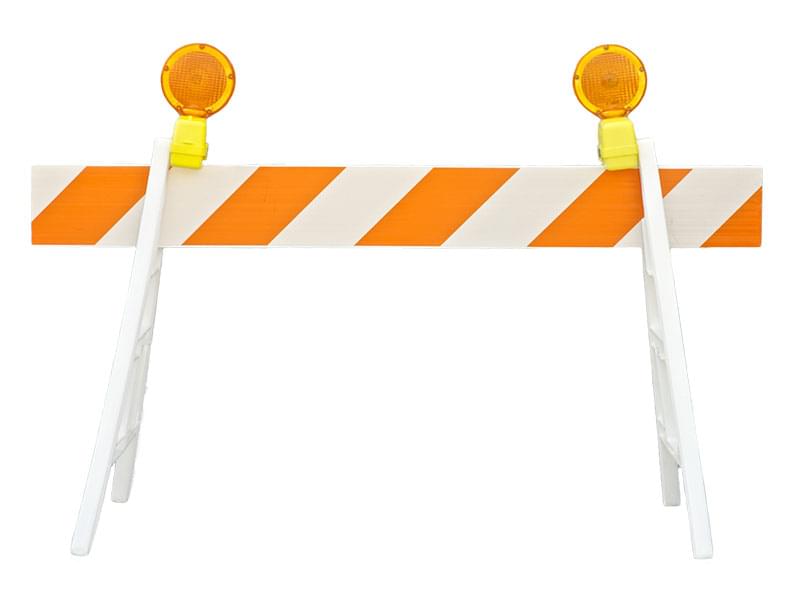

| Compatibility | Fits A-Frame Barricade Legs (A44000V) |
| Compliance | MUTCD retroreflectivity standards, OSHA 1926.202 |
| Sold As | Each |
| Lead Time | 2 weeks to ship |
Expert Insights
For DOT contractors, construction companies, and utility companies: Barricades and barrier rails are essential traffic control devices for lane closures, detours, and work zone delineation. Our A-frame, folding, and barrier rail options are built to MUTCD standards and engineered for rapid deployment across multiple job sites.
Fleet purchasing and seasonal stocking programs ensure your crews always have compliant barricades on hand. All units meet MUTCD compliance requirements for color, retroreflectivity, and dimensional specifications — keeping your projects in line with federal and state DOT regulations.
📞 Need volume pricing? Call (800) 869-9633 for quantity discounts on orders of 10+ units. AbsorbentsOnline has served industrial, municipal, and commercial customers since 1985.
Frequently Asked Questions
When should I choose the 8-foot rail over shorter lengths?
The 8-foot rail is ideal for full lane closures on standard 12-foot traffic lanes. When paired with A-Frame legs, the total assembly width exceeds 10 feet, providing effective coverage for single-lane closures on arterial and collector roads.
Is the 8-foot rail harder to transport than shorter lengths?
At 8 lbs and 8 feet long, this rail is still manageable for a single worker. It fits in standard pickup truck beds and on most equipment trailers. For large deployments, rails stack efficiently for transport.
What sheeting grade does my DOT require?
Requirements vary by state and application. Most state DOTs require HIP or DG sheeting for highways and arterials. Engineer Grade (EG) is typically acceptable only for low-speed urban and residential streets. Check your state DOT specifications or MUTCD Table 6F-1 for guidance.
Can I mix economy and I-beam rails on the same A-Frame legs?
Yes. Both economy and I-beam rails fit the same A-Frame Barricade Leg board-opening slots. You can use one of each type to achieve different visibility profiles on different sides of the barricade.
How many barricades do I need for a work zone?
The number depends on your traffic control plan. MUTCD provides taper formulas based on speed limit and lane width. As a general guideline, place barricades every 20-50 feet through tapers and every 50-100 feet along tangent sections.
What Our Customers Say
Real reviews from the facilities, field crews, and agencies that count on us.
-
★★★★★
"We've been running these barricades on DOT projects for over two years now. They hold up to daily abuse from our crews loading and unloading them off trucks, and the powder coat finish still looks sharp. Definitely the best value we've found for the price point."
✅ Verified Buyer
-
★★★★★
"Setup and teardown is a breeze. My crew can deploy a full line of A-frames in half the time it used to take with our old barricades. The folding mechanism is simple and nothing to jam up."
✅ Verified Buyer
-
★★★★★
"The reflective sheeting on these rails is extremely visible at night. Our utility crews work a lot of after-hours emergency jobs and the high-intensity prismatic sheeting gives us confidence that motorists can see the work zone clearly."
✅ Verified Buyer
Our Most Popular Product Lines
Absorbent Pads & Rolls
Marine Absorbents & Booms
Cross-Reference Guide
This product is compatible with applications that use the following part numbers:
- introCompatible part numbers for 8-Foot Plastic Economy Barrier Rail:
- partsA51006-RNSVA51106-REG1RVA51206-REG2VA51106-RFHIP1RVA51206-RFHIP2VA51106-RDG1RVA51206-RDG2V
- note8ft Economy Barrier Rail by VizCon. Pairs with A-Frame Barricade Legs (A44000V). Also available in 4ft, 6ft, and 10ft lengths. For flexible impact-resistant alternative, see I-Beam Barrier Rails. AbsorbentsOnline SKU: A51006-RNSV (non-sheeted base).
