60-Gal. Self-Closing Yellow Fire Cabinet w/ Legs
★★★★★ 5.0 out of 4 reviews · Google ReviewsRegular price
$2,997.97
$3,447.67
Sale price
$2,997.97
Regular price
$0.00
Save $449.70 (13%)
- 18-gauge double-walled steel —1½" air insulation between walls
- Meets OSHA & NFPA Code 30 —self-closing doors also meet UFC & NFPA Code 1
- Flammable liquid storage —tower design on welded legs
- FREE Shipping — ships to the Continental US
FREE Shipping — Continental US
Est. delivery:7-12business days - Ships from multiple US warehouses
Request A Quote
Fill out the form below and we’ll respond within 1 business day.
Share this product
Product Overview

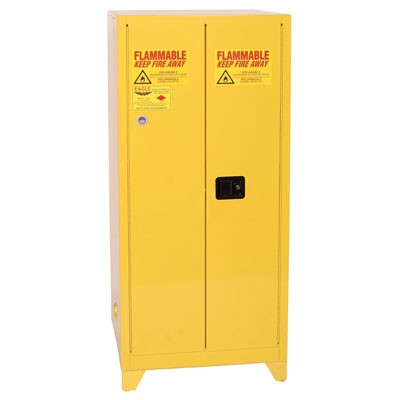

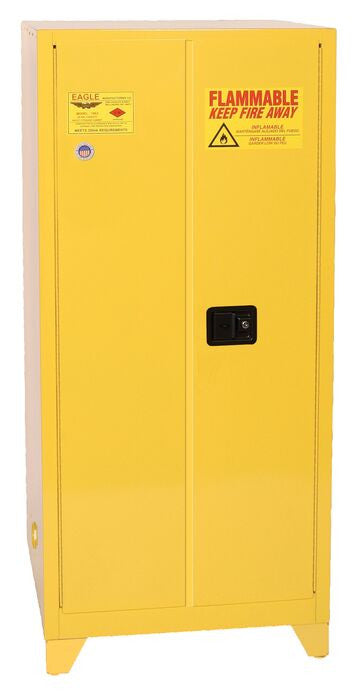

This Eagle 60-gallon self-closing flammable safety cabinet (Model A6010XLEGSE) provides high-capacity, code-compliant storage for flammable liquids with automatic door closure. The self-closing mechanism uses a fusible link that shuts all doors at 165°F (74°C), critical for facilities storing the maximum single-cabinet allowance under NFPA 30.

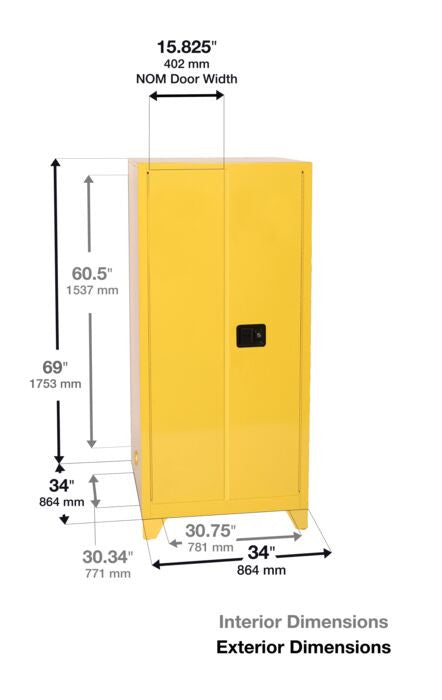

Built with 18-gauge double-wall welded steel construction with 1-1/2 inch air insulation, this cabinet meets NFPA 30 and OSHA 29 CFR 1910.106 requirements. It is both FM Approved and UL Listed. The cabinet features two self-closing doors, two adjustable shelves, a 2-inch leak-proof sump, and a built-in grounding connection. Dimensions are 31"W x 31"D x 69"H with a shipping weight of 368 lbs.
The 60-gallon capacity is the maximum allowed per single cabinet under NFPA 30 Section 9.5.1. Note the unique square footprint (31"x31") compared to the rectangular design of smaller models — this deeper profile accommodates larger containers while staying within the 60-gallon regulatory limit. Manufactured by Eagle Manufacturing and available from AbsorbentsOnline (trusted since 1985) with FREE shipping.
Technical Specifications
| SKU | A6010XLEGSE |
|---|---|
| Manufacturer | Eagle Manufacturing |
| Capacity | 60 Gallons |
| Door Type | Self-Closing |
| Number of Doors | 2 |
| Color | Yellow |
| Dimensions (WxDxH) | 31" x 31" x 69" |
| Shipping Weight | 368 lbs |
| Adjustable Shelves | 2 |
| Construction | 18-Gauge Double-Wall Welded Steel |
| Air Insulation | 1-1/2 Inch |
| Sump Capacity | 2-Inch Leak-Proof |
| Grounding | Built-In Grounding Connection |
| Compliance | NFPA 30, OSHA 29 CFR 1910.106, FM Approved, UL Listed |
Expert Insights
The 60-gallon capacity is the maximum allowed in a single cabinet under NFPA 30 Section 9.5.1 for Class I, II, and IIIA flammable liquids. This means one 60-gallon cabinet maxes out your per-cabinet allocation — you cannot add extra containers beyond the 60-gallon rating.
The self-closing mechanism on this model is particularly important at the 60-gallon capacity. With maximum flammable liquid volume stored, automatic door closure during a fire event is a critical safety layer. Insurance underwriters and fire marshals typically mandate self-closing doors for cabinets at or near maximum capacity.
Note the square footprint (31"W x 31"D) — this is significantly deeper than the 45-gallon model (18"D). Verify your placement location can accommodate the extra depth, especially if installing against a wall with electrical panels or piping behind it. The 368-lb shipping weight also requires planning for receiving and placement.
In a 180-gallon fire area, you can have up to three 60-gallon cabinets, but they must be separated per NFPA 30 spacing requirements. Cluster them too closely and the fire marshal may classify them as a single storage point.
Grounding is especially critical with 60-gallon cabinets — the larger volume of flammable vapors increases ignition risk from static discharge. Use a dedicated grounding strap from the cabinet's grounding lug to the facility grounding bus.
Safety Cabinets in Action
Manufacturing plants and maintenance shops position tower-style flammable cabinets along production lines where workers need quick access to solvents, thinners, and cleaning agents. The elevated design keeps containers at waist height for ergonomic dispensing and allows spill cleanup beneath the cabinet without moving it.
Purchased by safety managers, facility directors, lab managers, EHS coordinators, warehouse supervisors, and compliance officers. All cabinets are manufactured in the USA with corrosion-resistant powder coating and arrive fully assembled with adjustable shelves.
Frequently Asked Questions
60-Gal. Self-Closing Yellow Fire Cabinet w/ Legs
Why is 60 gallons the maximum for a single flammable safety cabinet?
NFPA 30 Section 9.5.1 sets the 60-gallon limit per individual cabinet for Class I, II, and IIIA flammable liquids. This is a fire safety engineering limit — above 60 gallons, the fire load from a single container becomes too high for the cabinet construction to manage safely in a standard fire scenario.
How does the square footprint (31x31) compare to the rectangular 45-gallon model?
The 60-gallon cabinet is 31"W x 31"D versus 43"W x 18"D for the 45-gallon. The square profile is 13" deeper but 12" narrower. It fits better in corner locations but may not work in tight wall-hugging spots where the 45-gallon rectangular shape excels. Measure your space before ordering.
Can I store drums in this cabinet?
No — the interior dimensions and shelf configuration are designed for safety cans, pails, and small containers (typically 1-gallon to 5-gallon). For drum storage, you need a dedicated drum storage cabinet or containment pallet. The 2-door, 2-shelf interior maximizes access for smaller containers.
How many 60-gallon cabinets can I have in one fire area?
NFPA 30 limits a single fire area to 180 gallons total in safety cabinets. With 60-gallon cabinets, that means a maximum of three cabinets per fire area. They must be properly spaced per NFPA 30 Table 9.5.4.1. Exceeding these limits requires a dedicated inside flammable storage room.
Is the self-closing mechanism reliable long-term?
Yes — the fusible link and spring mechanism are passive and have no electronics or batteries. The link melts at 165°F, releasing the doors to close under spring tension. No maintenance required on the fusible link, but monthly checks should verify the springs have proper tension and doors close fully.
What containers are compatible with this cabinet?
Store metal or approved plastic safety cans (1-gal, 2.5-gal, 5-gal), metal pails, small solvent cans, and paint cans. Do not store pressurized aerosol cans (they require a dedicated aerosol storage cabinet), gas cylinders, or incompatible chemicals like oxidizers or acids.
What Our Customers Say
Real reviews from the facilities, field crews, and agencies that count on us.
-
-
The tower design is perfect for our production floor. Having the solvents at waist height means no bending over, and the legs make it easy to see and clean up any drips underneath. Bought three for different stations and every one arrived in perfect condition. Great product.
-
Needed compliant safety storage for our facility expansion and AbsorbentsOnline had the best prices we found anywhere. The cabinets are well-built, arrived damage-free, and our compliance team had zero issues during the fire marshal walkthrough. We’ll be ordering more as we expand additional areas. The customer service team was also very responsive when we had questions about which sizes to order.
Our Most Popular Product Lines
Absorbent Pads & Rolls
Marine Absorbents & Booms
Cross-Reference Guide
This product is compatible with applications that use the following part numbers:
- introThe Eagle 60-gallon self-closing cabinet (A6010XLEGSE) provides the maximum per-cabinet capacity under NFPA 30 with automatic door closure. Compare all sizes below.
- partsA1962XLEGSE - 60-Gal Manual Close (same capacity, lower cost)A4510XLEGSE - 45-Gal Self-Closing (smaller rectangular footprint)A1947XLEGSE - 45-Gal Manual CloseA3010XLEGSE - 30-Gal Self-ClosingA1932XLEGSE - 30-Gal Manual CloseA1905XLEGSE - 16-Gal Self-ClosingA1906XLEGSE - 16-Gal Manual CloseA1924XLEGSE - 12-Gal Self-ClosingA1925XLEGSE - 12-Gal Manual CloseA9010XLEGSE - 90-Gal Self-Closing (paint/ink rated)A1992XLEGSE - 90-Gal Manual Close (paint/ink rated)
- note60 gallons is the NFPA 30 maximum for Class I/II/IIIA flammable liquids. For paint and ink storage beyond 60 gallons, see the 90-gallon models. All cabinets are FM Approved and UL Listed.
