60-Gal. Manual Close Yellow Fire Cabinet w/ Legs
★★★★★ 5.0 out of 4 reviews · Google ReviewsRegular price
$2,475.97
$2,847.37
Sale price
$2,475.97
Regular price
$0.00
Save $371.40 (13%)
- 18-gauge double-walled steel —1½" air insulation between walls
- Meets OSHA & NFPA Code 30 —compliant for flammable & combustible liquid storage
- Flammable liquid storage —tower design on welded legs
- FREE Shipping — ships to the Continental US
FREE Shipping — Continental US
Est. delivery:7-12business days - Ships from multiple US warehouses
Request A Quote
Fill out the form below and we’ll respond within 1 business day.
Share this product
Product Overview

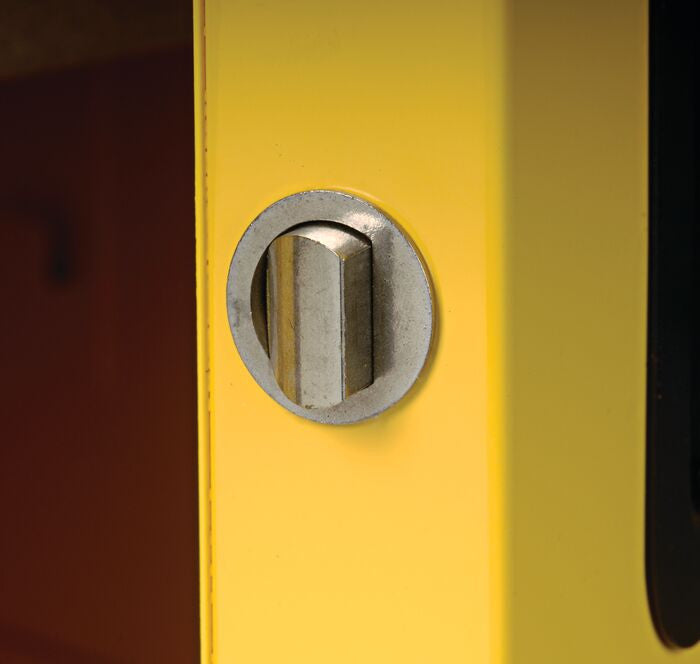

This Eagle 60-gallon manual-close flammable safety cabinet (Model A1962XLEGSE) provides maximum single-cabinet capacity for flammable liquid storage with a cost-effective manual door design. The three-point self-latching mechanism keeps doors securely shut between access.

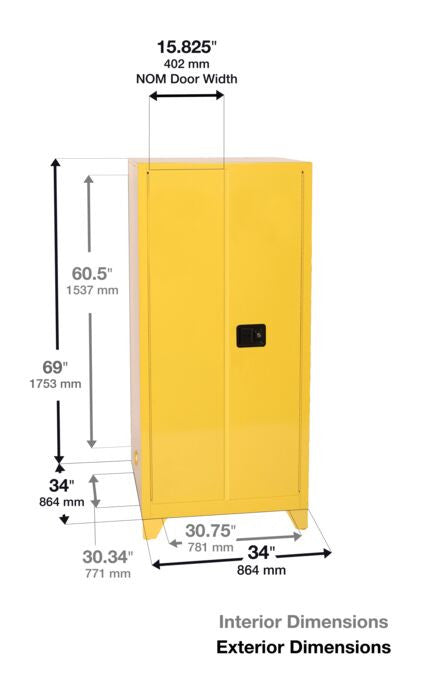

Built with 18-gauge double-wall welded steel construction with 1-1/2 inch air insulation, this cabinet meets NFPA 30 and OSHA 29 CFR 1910.106 requirements. It is both FM Approved and UL Listed. The cabinet features two manual-close doors, two adjustable shelves, a 2-inch leak-proof sump, and a built-in grounding connection. Dimensions are 31"W x 31"D x 69"H with a shipping weight of 364 lbs.
At 60 gallons, this is the maximum capacity allowed in a single cabinet under NFPA 30. The square footprint (31"x31") differs from smaller models — if floor space is tight, measure carefully. The manual-close version saves cost vs. the self-closing model while providing identical fire protection and compliance ratings. Manufactured by Eagle Manufacturing, available from AbsorbentsOnline (trusted since 1985) with FREE shipping.
Technical Specifications
| SKU | A1962XLEGSE |
|---|---|
| Manufacturer | Eagle Manufacturing |
| Capacity | 60 Gallons |
| Door Type | Manual Close |
| Number of Doors | 2 |
| Color | Yellow |
| Dimensions (WxDxH) | 31" x 31" x 69" |
| Shipping Weight | 364 lbs |
| Adjustable Shelves | 2 |
| Construction | 18-Gauge Double-Wall Welded Steel |
| Air Insulation | 1-1/2 Inch |
| Sump Capacity | 2-Inch Leak-Proof |
| Grounding | Built-In Grounding Connection |
| Compliance | NFPA 30, OSHA 29 CFR 1910.106, FM Approved, UL Listed |
Expert Insights
The 60-gallon manual-close model gives you maximum per-cabinet capacity at a lower price point. However, at this volume the self-closing upgrade becomes harder to justify skipping — 60 gallons of flammable liquid represents significant fire load, and automatic door closure is a meaningful safety layer.
Consider this: NFPA 30 does not require self-closing doors on safety cabinets (both types meet the standard), but many Authorities Having Jurisdiction (AHJs) and insurance carriers mandate self-closing for cabinets above 30 gallons. Check with your fire marshal BEFORE purchasing to avoid a costly swap later.
The square 31"x31" footprint is unique to the 60-gallon models. This makes them harder to fit in narrow aisleways or against walls compared to the rectangular 45-gallon cabinets (43"x18"). However, the square profile is more stable and the cabinet can accept wider containers.
For facilities near the 180-gallon fire area limit: three 60-gallon manual-close cabinets exactly reach the limit. If you anticipate future growth, consider using 45-gallon cabinets instead for more flexibility.
Grounding the cabinet is non-negotiable when dispensing from or into containers within the cabinet. The manual doors being open during dispensing increases vapor release — always ground before opening and work in a ventilated area.
Safety Cabinets in Action
Manufacturing plants and maintenance shops position tower-style flammable cabinets along production lines where workers need quick access to solvents, thinners, and cleaning agents. The elevated design keeps containers at waist height for ergonomic dispensing and allows spill cleanup beneath the cabinet without moving it.
Purchased by safety managers, facility directors, lab managers, EHS coordinators, warehouse supervisors, and compliance officers. All cabinets are manufactured in the USA with corrosion-resistant powder coating and arrive fully assembled with adjustable shelves.
Frequently Asked Questions
60-Gal. Manual Close Yellow Fire Cabinet w/ Legs
Should I choose manual-close or self-closing for a 60-gallon cabinet?
At 60-gallon capacity (the NFPA 30 maximum), self-closing is strongly recommended. The higher volume means greater fire load, and automatic door closure provides a critical safety layer. Many AHJs and insurance carriers require self-closing for cabinets at or near maximum capacity. The manual-close version saves cost but puts door closure responsibility on the operator.
Why is the 60-gallon cabinet square instead of rectangular?
The 31"x31" square footprint is an engineering necessity — to reach 60-gallon capacity in a standard 69" height with 2 doors, the cabinet needs more depth. Smaller cabinets (12-45 gallon) use a shallower rectangular profile (18" deep). The square shape accommodates wider containers and provides a more stable base.
Can I upgrade from manual-close to self-closing later?
Converting a manual-close cabinet to self-closing is not practical — the door hinge mechanisms, springs, and fusible links are integrated during manufacturing. Swapping requires replacing the entire door assembly, which typically costs more than the price difference between models. Choose the right type upfront.
What is the 180-gallon fire area limit?
NFPA 30 Section 9.5.1 limits total flammable liquid storage in safety cabinets to 180 gallons per fire area. A fire area is a building section bounded by fire-rated walls or exterior walls. Three 60-gallon cabinets exactly reach this limit. Exceeding it requires a dedicated inside flammable storage room.
How do I receive and place a 364-lb cabinet?
You need a loading dock with a forklift or pallet jack. The cabinet ships on a pallet and must be moved to its final location before unpacking. At 31" wide, it fits through standard doorways easily. Once in position, level the cabinet, connect grounding, and verify doors close properly.
What is the color coding for safety cabinets?
Yellow cabinets are for flammable liquids (OSHA standard). Red cabinets are for combustible liquids and paints. Blue cabinets are for corrosive acids. This cabinet is yellow, indicating it is designed and rated for Class I, II, and IIIA flammable liquid storage.
