6' Plastic I-Beam Barrier Rail
★★★★★ 5.0 out of 4 reviews · Google ReviewsFill out the form below and we’ll respond within 1 business day.
Share this product
Product Overview
Technical Specifications
| SKU | A44006-NSV (Non-sheeted), A44006-ES-1RV (1-Side EG), A44006-ES-2V (2-Sides EG), A44006-FHIP-1RV (1-Side HI), A44006-FHIP-2V (2-Sides HI), A44006-DG-1RV (1-Side DG), A44006-DG-2V (2-Sides DG) |
|---|---|
| Length | 6 feet |
| Material | Flexible, impact-resistant polyethylene (I-beam profile) |
| Color | Orange with white reflective striping (sheeted versions) |
| Weight | 5 lbs |
| Sheeting Options | Non-sheeted, Engineer Grade (EG), High-Intensity Prismatic (HIP), Diamond Grade (DG) |
| Sheeting Sides | 1-side or 2-side options available |
| Sign Clip Compatible | Yes - accepts sign clip A44003-RSCV |
| Compatibility | Fits A-Frame Barricade Legs (A44000V) |
| Compliance | MUTCD retroreflectivity standards, OSHA 1926.202 |
| Sold As | Each |
| Lead Time | 2 weeks to ship |
Expert Insights
For DOT contractors, construction companies, and utility companies: Barricades and barrier rails are essential traffic control devices for lane closures, detours, and work zone delineation. Our A-frame, folding, and barrier rail options are built to MUTCD standards and engineered for rapid deployment across multiple job sites.
Fleet purchasing and seasonal stocking programs ensure your crews always have compliant barricades on hand. All units meet MUTCD compliance requirements for color, retroreflectivity, and dimensional specifications — keeping your projects in line with federal and state DOT regulations.
📞 Need volume pricing? Call (800) 869-9633 for quantity discounts on orders of 10+ units. AbsorbentsOnline has served industrial, municipal, and commercial customers since 1985.
Frequently Asked Questions
Why choose the 6-foot I-beam rail over the 6-foot economy rail?
The I-beam rail is made from flexible polyethylene that bends on vehicle impact and springs back to shape, dramatically reducing replacement costs in active work zones. It also accepts sign clips for direct sign mounting. Economy rails are rigid and more affordable but crack on impact.
What signs can I mount on the I-beam rail?
Using the sign clip (A44003-RSCV), you can mount any rectangular sign up to 24 inches wide by 18 inches high -- including Road Closed, Detour, Men Working, and other standard MUTCD regulatory and warning signs.
How does this rail handle extreme temperatures?
The polyethylene construction remains flexible across a wide temperature range. Unlike rigid plastic that becomes brittle in cold weather, I-beam rails maintain their impact-resistant flex properties in both extreme heat and freezing conditions.
Can I use this rail for Type II or Type III barricades?

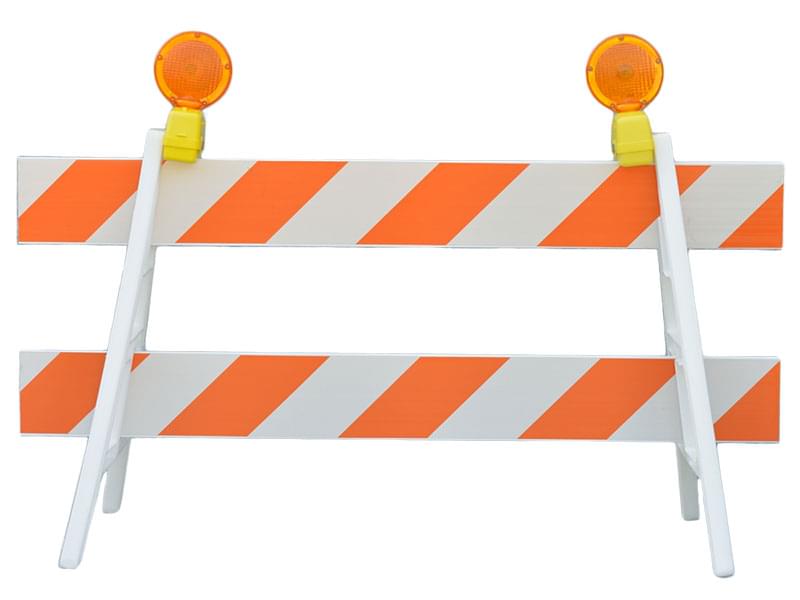

Yes. Stack two 6-foot I-beam rails on the same pair of A-Frame legs using both board-opening slots to create a Type II barricade. For Type III barricades, use three rails with taller support structures per MUTCD specifications.
What is the sheeting lifespan on I-beam rails?
Reflective sheeting typically maintains MUTCD-compliant retroreflectivity for 7-10 years depending on the grade and environmental exposure. Diamond Grade (DG) sheeting has the longest lifespan. Inspect sheeting annually and replace rails when retroreflectivity falls below minimum standards.
What Our Customers Say
Real reviews from the facilities, field crews, and agencies that count on us.
-
★★★★★
"We've been running these barricades on DOT projects for over two years now. They hold up to daily abuse from our crews loading and unloading them off trucks, and the powder coat finish still looks sharp. Definitely the best value we've found for the price point."
✅ Verified Buyer
-
★★★★★
"Setup and teardown is a breeze. My crew can deploy a full line of A-frames in half the time it used to take with our old barricades. The folding mechanism is simple and nothing to jam up."
✅ Verified Buyer
-
★★★★★
"The reflective sheeting on these rails is extremely visible at night. Our utility crews work a lot of after-hours emergency jobs and the high-intensity prismatic sheeting gives us confidence that motorists can see the work zone clearly."
✅ Verified Buyer
Our Most Popular Product Lines
Absorbent Pads & Rolls
Marine Absorbents & Booms
Cross-Reference Guide
This product is compatible with applications that use the following part numbers:
- introCompatible part numbers for 6-Foot Plastic I-Beam Barrier Rail:
- partsA44006-NSVA44006-ES-1RVA44006-ES-2VA44006-FHIP-1RVA44006-FHIP-2VA44006-DG-1RVA44006-DG-2V
- note6ft I-Beam Barrier Rail by VizCon. Pairs with A-Frame Barricade Legs (A44000V) and Sign Clips (A44003-RSCV). Also available in 4ft, 8ft, 10ft, and 12ft lengths. For budget-friendly alternative, see Economy Barrier Rails. AbsorbentsOnline SKU: A44006-NSV (non-sheeted base).
