45-Gal. Self-Closing Yellow Fire Cabinet w/ Legs
★★★★★ 5.0 out of 4 reviews · Google ReviewsRegular price
$2,499.97
$2,874.97
Sale price
$2,499.97
Regular price
$0.00
Save $375.00 (13%)
- 18-gauge double-walled steel —1½" air insulation between walls
- Meets OSHA & NFPA Code 30 —self-closing doors also meet UFC & NFPA Code 1
- Flammable liquid storage —tower design on welded legs
- FREE Shipping — ships to the Continental US
FREE Shipping — Continental US
Est. delivery:7-12business days - Ships from multiple US warehouses
Request A Quote
Fill out the form below and we’ll respond within 1 business day.
Share this product
Product Overview

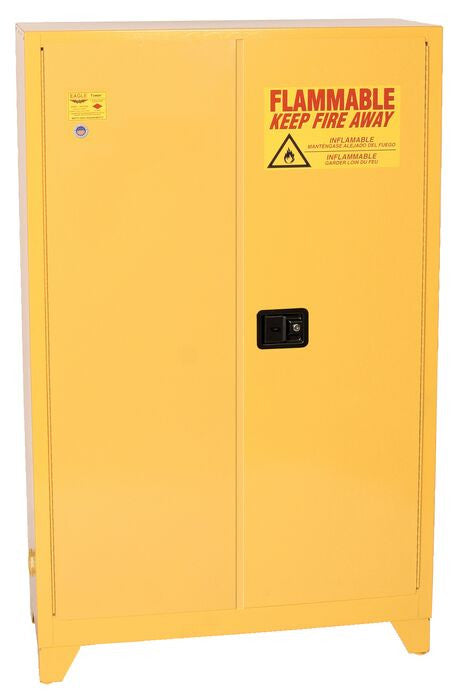

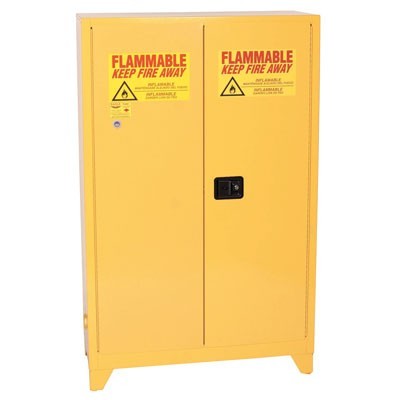

This Eagle 45-gallon self-closing flammable safety cabinet (Model A4510XLEGSE) provides secure, code-compliant storage for flammable liquids in high-traffic industrial environments. The self-closing door mechanism uses a fusible link that automatically shuts all doors at 165°F (74°C), making it ideal for busy facilities where operators may forget to close doors manually.
Built with 18-gauge double-wall welded steel construction with 1-1/2 inch air insulation, this cabinet meets NFPA 30 and OSHA 29 CFR 1910.106 requirements. It is both FM Approved and UL Listed. The cabinet features two self-closing doors, two adjustable shelves, a 2-inch leak-proof sump, and a built-in grounding connection. Dimensions are 43"W x 18"D x 69"H with a shipping weight of 356 lbs.
The 45-gallon capacity is the most popular mid-range size — large enough for multiple 5-gallon containers while still fitting through standard doorways. Manufactured by Eagle Manufacturing and available from AbsorbentsOnline (trusted since 1985) with FREE shipping on this cabinet.
Technical Specifications
| SKU | A4510XLEGSE |
|---|---|
| Manufacturer | Eagle Manufacturing |
| Capacity | 45 Gallons |
| Door Type | Self-Closing |
| Number of Doors | 2 |
| Color | Yellow |

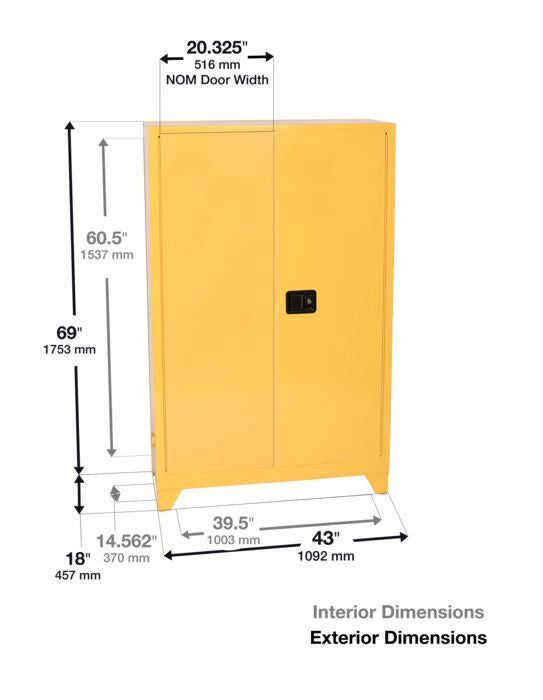

| Dimensions (WxDxH) | 43" x 18" x 69" |
| Shipping Weight | 356 lbs |
| Adjustable Shelves | 2 |
| Construction | 18-Gauge Double-Wall Welded Steel |
| Air Insulation | 1-1/2 Inch |
| Sump Capacity | 2-Inch Leak-Proof |
| Grounding | Built-In Grounding Connection |
| Compliance | NFPA 30, OSHA 29 CFR 1910.106, FM Approved, UL Listed |
Expert Insights
NFPA 30 Section 9.5.1 limits flammable liquid storage to 60 gallons per cabinet and 180 gallons per fire area. A single 45-gallon cabinet keeps you well within limits with room to grow. If your facility later needs more capacity, you can add a second 45-gallon cabinet without exceeding the 180-gallon fire area limit.
Self-closing doors on this model are strongly recommended for high-traffic areas or multi-user environments. The fusible link mechanism provides a critical failsafe — doors close automatically in a fire even if the last user walked away without closing them. Many fire marshals and insurance underwriters specifically recommend self-closing models.
Grounding is mandatory when dispensing flammable liquids inside or near the cabinet. Connect the cabinet's grounding lug to your facility's grounding system using a proper grounding wire (not a standard extension cord ground). Static discharge during pouring is a leading ignition source for flammable liquid fires.
Conduct monthly visual inspections: check door closure, latch engagement, sump integrity, and grounding wire connections. Document inspections — OSHA inspectors will ask for records. Replace any cabinet showing visible rust-through, warped doors, or damaged self-closing mechanisms immediately.
The 43"x18" rectangular footprint fits against walls and between equipment better than the square-profile 60-gallon models. Consider your floor plan when choosing between 45 and 60-gallon cabinets.
Safety Cabinets in Action
Manufacturing plants and maintenance shops position tower-style flammable cabinets along production lines where workers need quick access to solvents, thinners, and cleaning agents. The elevated design keeps containers at waist height for ergonomic dispensing and allows spill cleanup beneath the cabinet without moving it.
Purchased by safety managers, facility directors, lab managers, EHS coordinators, warehouse supervisors, and compliance officers. All cabinets are manufactured in the USA with corrosion-resistant powder coating and arrive fully assembled with adjustable shelves.
Frequently Asked Questions
45-Gal. Self-Closing Yellow Fire Cabinet w/ Legs
How many 5-gallon cans fit in a 45-gallon safety cabinet?
A 45-gallon cabinet typically holds 9-12 standard 5-gallon safety cans depending on can dimensions. The two adjustable shelves let you configure for optimal container arrangement. Note that NFPA 30 limits the total stored volume to the cabinet rating (45 gallons), regardless of how many containers fit physically.
What is the difference between self-closing and manual-close safety cabinets?
Self-closing cabinets use a fusible link mechanism that automatically shuts doors at 165°F. Manual-close cabinets require the operator to close doors by hand. Both meet the same NFPA 30 and OSHA standards, but self-closing provides an additional safety layer in fire emergencies. Many fire marshals prefer self-closing for high-traffic or multi-user areas.
Do I need to ground this safety cabinet?
Yes — grounding is required whenever dispensing flammable liquids from or into containers near the cabinet. Connect the built-in grounding lug to your facility grounding system using a proper grounding wire. Static discharge during pouring is a leading cause of flammable liquid fires.
Can I store different types of flammable liquids together in one cabinet?
Yes, you can store compatible flammable liquids together. However, never mix incompatible chemicals (e.g., flammable solvents with oxidizers or acids). Check Safety Data Sheets (SDS) for compatibility. Yellow cabinets are designated for flammable liquids — use red for combustibles, blue for corrosives.
How often should I inspect my safety cabinet?
Conduct monthly visual inspections checking: self-closing mechanism engages properly, door seals are intact, sump has no cracks or leaks, grounding wire is connected, and shelves are secure. Document all inspections — OSHA inspectors will ask for records. Replace any cabinet showing structural damage.
Will this cabinet fit through a standard doorway?
Yes. At 43" wide, this cabinet fits through standard 48" commercial doorways with 5" to spare. However, at 356 lbs shipping weight, you will need a dolly, hand truck, or pallet jack for moving. Plan your delivery path from the dock to final placement location.
