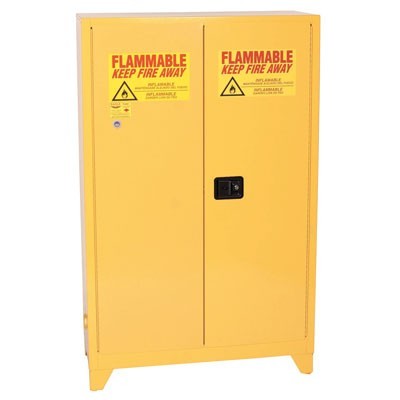

45-Gal. Manual Close Yellow Fire Cabinet w/ Legs
★★★★★ 5.0 out of 4 reviews · Google ReviewsRegular price
$2,199.97
$2,529.97
Sale price
$2,199.97
Regular price
$0.00
Save $330.00 (13%)
- 18-gauge double-walled steel —1½" air insulation between walls
- Meets OSHA & NFPA Code 30 —compliant for flammable & combustible liquid storage
- Flammable liquid storage —tower design on welded legs
- FREE Shipping — ships to the Continental US
FREE Shipping — Continental US
Est. delivery:7-12business days - Ships from multiple US warehouses
Request A Quote
Fill out the form below and we’ll respond within 1 business day.
Share this product
Product Overview

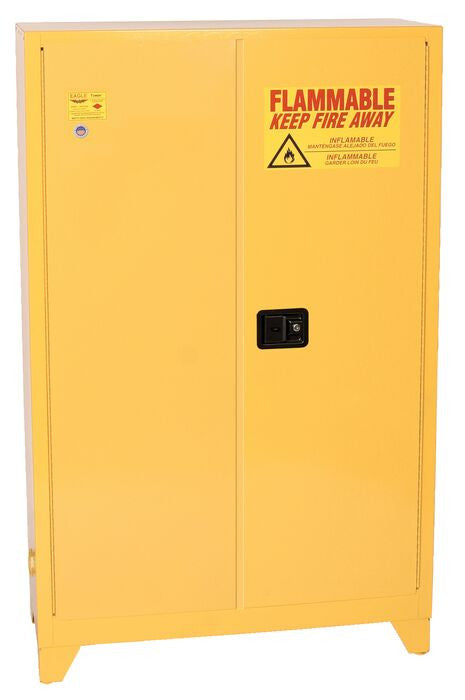

This Eagle 45-gallon manual-close flammable safety cabinet (Model A1947XLEGSE) provides secure, code-compliant storage for flammable liquids at a lower price point than self-closing models. The manual door design features a standard three-point self-latching mechanism that keeps doors firmly shut until deliberately opened.

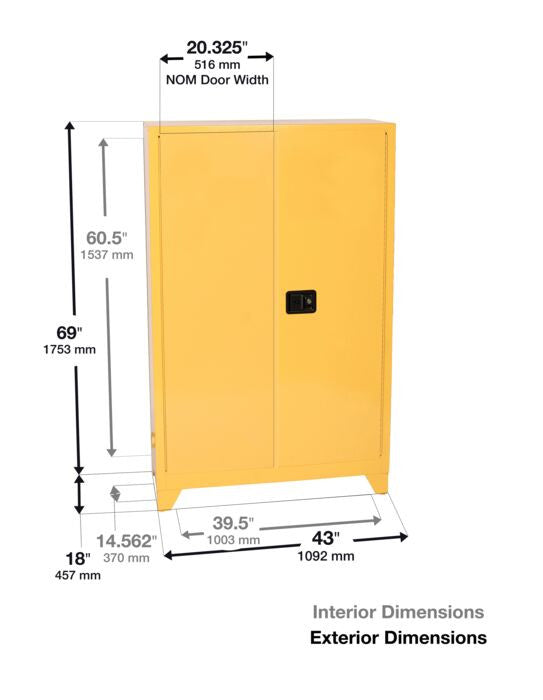

Built with 18-gauge double-wall welded steel construction with 1-1/2 inch air insulation, this cabinet meets NFPA 30 and OSHA 29 CFR 1910.106 requirements. It is both FM Approved and UL Listed. The cabinet features two manual-close doors, two adjustable shelves, a 2-inch leak-proof sump, and a built-in grounding connection. Dimensions are 43"W x 18"D x 69"H with a shipping weight of 352 lbs.
The 45-gallon manual-close model offers the same 18-gauge steel protection and compliance ratings as the self-closing version at a reduced cost — ideal for facilities with disciplined operators who consistently close cabinet doors. Manufactured by Eagle Manufacturing and available from AbsorbentsOnline (trusted since 1985) with FREE shipping.
Technical Specifications
| SKU | A1947XLEGSE |
|---|---|
| Manufacturer | Eagle Manufacturing |
| Capacity | 45 Gallons |
| Door Type | Manual Close |
| Number of Doors | 2 |
| Color | Yellow |
| Dimensions (WxDxH) | 43" x 18" x 69" |
| Shipping Weight | 352 lbs |
| Adjustable Shelves | 2 |
| Construction | 18-Gauge Double-Wall Welded Steel |
| Air Insulation | 1-1/2 Inch |
| Sump Capacity | 2-Inch Leak-Proof |
| Grounding | Built-In Grounding Connection |
| Compliance | NFPA 30, OSHA 29 CFR 1910.106, FM Approved, UL Listed |
Expert Insights
The 45-gallon manual-close model provides identical fire protection to the self-closing version — same 18-gauge double-wall steel, same FM/UL ratings, same 10-minute fire endurance. The only operational difference is door closure responsibility falls on the operator.
Manual-close cabinets are best suited for single-user environments, private labs, or areas where a dedicated operator manages chemical storage. In shared or high-traffic facilities, self-closing models reduce risk from human error — a door left open during a fire event negates the cabinet's protective design.
NFPA 30 Section 9.5.1 allows up to 60 gallons per individual cabinet and 180 gallons per fire area. Your 45-gallon cabinet leaves 135 gallons of headroom in the fire area for additional cabinets. Plan your storage layout to maintain required separation distances between cabinets (consult NFPA 30 Table 9.5.4.1).
Some insurance carriers and AHJs (Authorities Having Jurisdiction) may require self-closing doors in certain occupancy classifications. Check with your fire marshal before purchasing — switching from manual to self-closing after delivery adds significant cost.

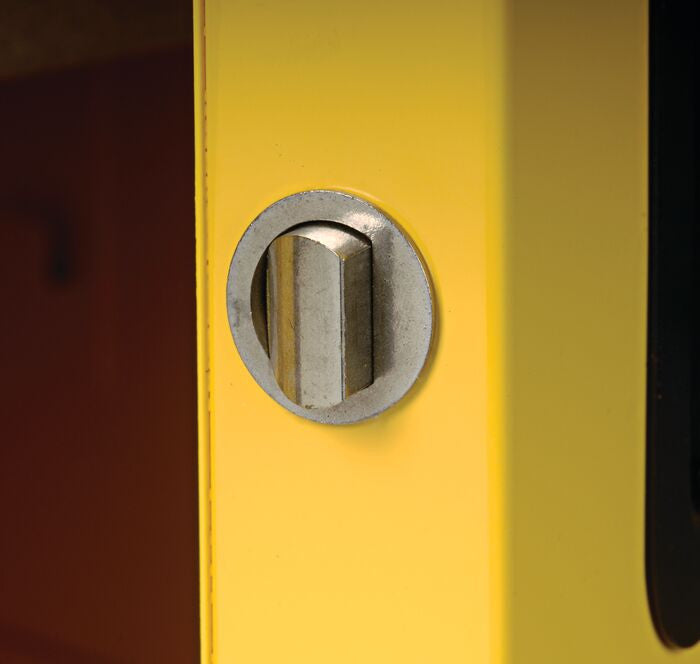

Monthly inspections should verify: three-point latch engages fully, no visible damage to door seals or hinges, sump is intact with no cracks, and grounding wire is firmly attached. OSHA expects documented inspection records.
Safety Cabinets in Action
Manufacturing plants and maintenance shops position tower-style flammable cabinets along production lines where workers need quick access to solvents, thinners, and cleaning agents. The elevated design keeps containers at waist height for ergonomic dispensing and allows spill cleanup beneath the cabinet without moving it.
Purchased by safety managers, facility directors, lab managers, EHS coordinators, warehouse supervisors, and compliance officers. All cabinets are manufactured in the USA with corrosion-resistant powder coating and arrive fully assembled with adjustable shelves.
Frequently Asked Questions
45-Gal. Manual Close Yellow Fire Cabinet w/ Legs
How many containers fit in a 45-gallon manual-close cabinet?

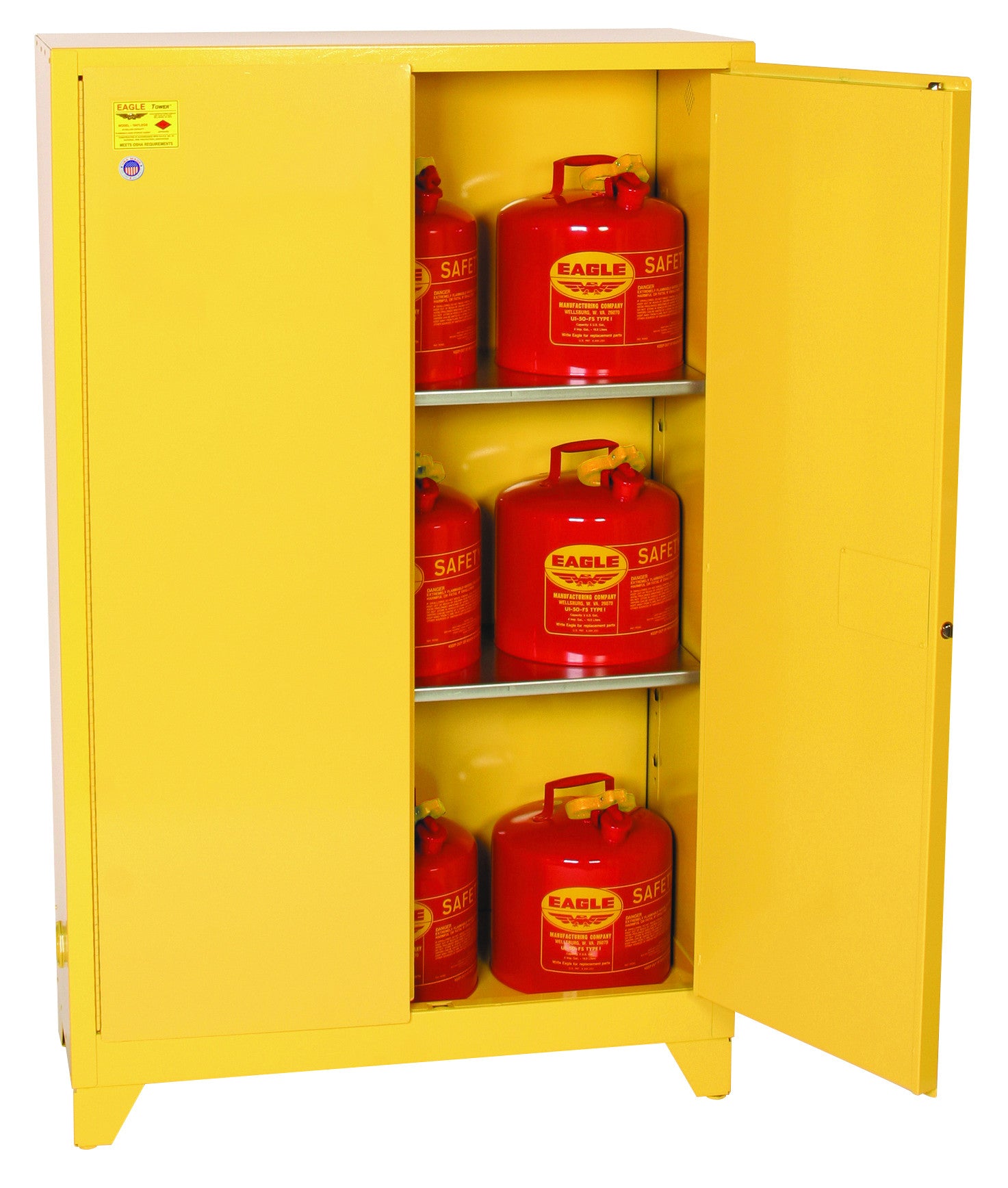

A 45-gallon cabinet holds 9-12 standard 5-gallon safety cans with the two adjustable shelves. You can also store 1-gallon cans, quarts, and pint containers. The total volume of all stored liquids must not exceed 45 gallons per NFPA 30.
Is a manual-close cabinet OSHA-compliant?
Yes. Both manual-close and self-closing safety cabinets meet OSHA 29 CFR 1910.106 and NFPA 30 requirements. OSHA does not mandate self-closing doors. However, some local fire codes or insurance carriers may require self-closing — check with your Authority Having Jurisdiction (AHJ) before purchasing.
What is the advantage of manual-close over self-closing?
Lower cost is the primary advantage. The manual-close version provides identical fire protection (same 18-gauge double-wall steel, FM/UL ratings) at a reduced price. Manual-close is ideal for single-user or supervised environments where operators consistently close doors after access.
Do I need to bolt this cabinet to the floor?
NFPA 30 does not require floor bolting for most installations. However, seismic zones (California, Pacific Northwest) and some local codes require anchoring. At 352 lbs, the cabinet is stable but can shift during seismic events. Check local building codes for anchoring requirements.
Can I use this cabinet for paint and ink storage?
Yes, the 45-gallon cabinet works for paint, ink, and other flammable liquids. For facilities needing larger paint/ink storage, Eagle offers 90-gallon paint and ink cabinets specifically designed for that purpose.
How do I properly ground the cabinet?
Connect a grounding wire from the cabinet built-in grounding lug to your facility grounding bus or a grounding rod. Use a proper grounding clamp and wire — do not rely on an extension cord ground pin. Test the ground connection with a multimeter (should show less than 1 ohm resistance to earth ground).
What Our Customers Say
Real reviews from the facilities, field crews, and agencies that count on us.
-
-
The tower design is perfect for our production floor. Having the solvents at waist height means no bending over, and the legs make it easy to see and clean up any drips underneath. Bought three for different stations and every one arrived in perfect condition. Great product.
-
Needed compliant safety storage for our facility expansion and AbsorbentsOnline had the best prices we found anywhere. The cabinets are well-built, arrived damage-free, and our compliance team had zero issues during the fire marshal walkthrough. We’ll be ordering more as we expand additional areas. The customer service team was also very responsive when we had questions about which sizes to order.
Our Most Popular Product Lines
Absorbent Pads & Rolls
Marine Absorbents & Booms
Cross-Reference Guide
This product is compatible with applications that use the following part numbers:
- introThe Eagle 45-gallon manual-close cabinet (A1947XLEGSE) is the budget-friendly version of the 45-gallon self-closing model. Compare all available sizes and door types below.
- partsA4510XLEGSE - 45-Gal Self-Closing (same size, auto-close doors)A1924XLEGSE - 12-Gal Self-ClosingA1925XLEGSE - 12-Gal Manual CloseA1905XLEGSE - 16-Gal Self-ClosingA1906XLEGSE - 16-Gal Manual CloseA3010XLEGSE - 30-Gal Self-ClosingA1932XLEGSE - 30-Gal Manual CloseA6010XLEGSE - 60-Gal Self-Closing (max capacity)A1962XLEGSE - 60-Gal Manual CloseA9010XLEGSE - 90-Gal Self-Closing (paint/ink)A1992XLEGSE - 90-Gal Manual Close
- noteAll Eagle safety cabinets feature 18-gauge double-wall steel, FM/UL listed, NFPA 30 compliant. Manual-close models save cost while providing identical fire-rated construction.
