4-Drum Fluorinated Pallet, Blue, Higher Sump

★★★★★ 5.0 out of 4 reviews · Google Reviews

$1,053.97 ~~$1,212.07~~

$1,053.97 ~~$0.00~~

Save $158.10 (13%)

4-Drum Fluorinated Pallet, Blue, Higher Sump — EPA SPCC & 40 CFR 264.175 compliant spill containment
Heavy-duty construction — UV-stabilized polyethylene or steel; built for industrial environments
Reliable sump capacity — captures leaks, drips & spills to protect your facility and the environment
FREE Shipping — ships to the Continental US

FREE Shipping — Continental US Est. delivery:5-10business days - Ships from multiple US warehouses

SKU: A1233ACU

Product Overview

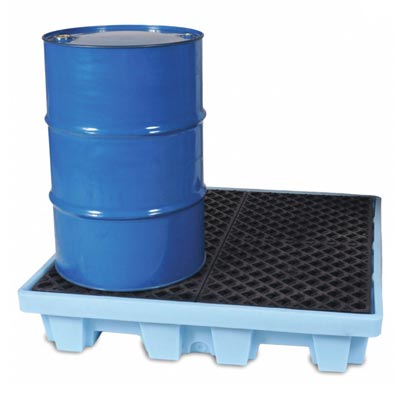

The 4-Drum Fluorinated Spill Pallet, Higher Sump (SKU: A1233ACU) from UltraTech provides EPA-compliant secondary containment for four 55-gallon drums containing aggressive chemicals. Constructed from fluorinated polyethylene (fluorinated HDPE), this pallet resists hydrofluoric acid (HF), nitric acid, sulfuric acid, organic solvents, and other corrosive substances. Measures 51" x 51" x 10" with a 66-gallon sump capacity — exceeding the EPA 110% containment rule for one 55-gallon drum. The higher sump walls provide maximum containment depth. Supports a 6,000 lb load capacity. No fork pockets or drain plug. Weighs 80 lbs. The light blue color identifies this pallet as rated for aggressive chemical storage. Ships FREE to the Continental US from AbsorbentsOnline.com — a trusted name in spill containment and safety products since 1985.

Technical Specifications

SKU	A1233ACU
Capacity	4-Drum (55 gal each)
Sump Capacity	66 Gallons
Dimensions	51" L x 51" W x 10" H
Material	Fluorinated Polyethylene (Fluorinated HDPE)
Color	Light Blue
Weight	80 lbs
Load Capacity	6,000 lbs
Fork Pockets	No
Drain Plug	No
Compliance	EPA 40 CFR 264.175, SPCC

Expert Insights

The higher sump model (10" H) provides 66 gallons of containment — a 50% increase over the low profile A1325ACU (44 gallons). This exceeds the EPA 110% rule for a single 55-gallon drum (60.5 gallons required), making it the better choice for full regulatory compliance. The 6,000 lb load capacity supports four fully loaded 55-gallon drums with an excellent safety margin. The 10-inch sump height does require lifting drums higher during loading — consider using a ramp (A0678ACU) or forklift for safe drum placement. Without a drain plug, collected liquids must be pumped or vacuumed. If drain capability is needed for easier maintenance, select the A1232ACU model with 3/4" drain. Both models share identical dimensions and capacity. The fluorinated surface requires quarterly inspection — look for discoloration, surface roughness changes, or cracking that may indicate chemical degradation of the fluorination barrier. Document in SPCC plan.

Frequently Asked Questions

How does this compare to the low profile A1325ACU?

This higher sump model provides 66 gallons of sump capacity (vs. 44 gallons for the low profile) and exceeds the EPA 110% rule for a single 55-gallon drum. The trade-off is a 10-inch height that requires lifting drums higher during loading.

Is a loading ramp available?

Yes. The Ramp for 4-Drum Fluorinated Pallets (A0678ACU) is designed specifically for the higher sump models A1233ACU and A1232ACU. It provides safe drum loading access.

What is the difference between this and the A1232ACU?

Both share identical dimensions, capacity, and load rating. The A1232ACU includes a 3/4" drain plug for controlled liquid removal, while this model (A1233ACU) does not have a drain.

Can I add a cover for outdoor protection?

Yes. The Cover for 4-Drum Spill Pallet (A1006ACU) fits this pallet and protects against rainwater accumulation outdoors.

What is the load capacity per drum position?

The 6,000 lb total load capacity provides approximately 1,500 lbs per drum position — significantly exceeding the weight of a full 55-gallon drum of most materials.
