These column protectors saved us from another costly I-beam repair. Forklift clipped the corner last week and the protector absorbed the hit perfectly. Easy to install — just wrap and strap. Ordered more for our second shift dock area.
4-6 inch Narrow Yellow Column Protector
★★★★★ 5.0 out of 4 reviews · Google ReviewsRegular price
$275.97
$317.37
Sale price
$275.97
Regular price
$0.00
Save $41.40 (13%)
- High-density polyethylene — absorbs forklift and vehicle impacts
- Easy wrap-around install — no tools required, fits standard columns
- High-visibility colors — available in yellow, orange, and lime green
- FREE Shipping — ships to the Continental US
FREE Shipping — Continental US
Est. delivery:7-12business days - Ships from multiple US warehouses
Request A Quote
Fill out the form below and we’ll respond within 1 business day.
Share this product
Product Overview

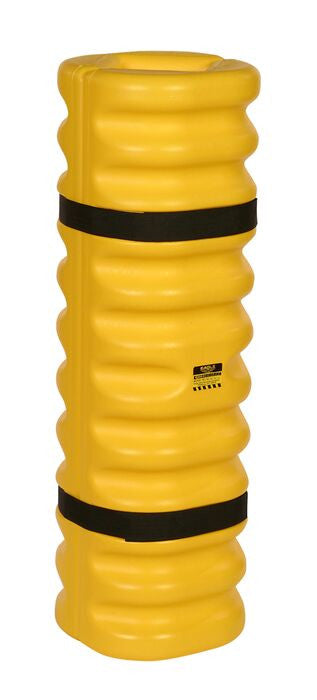

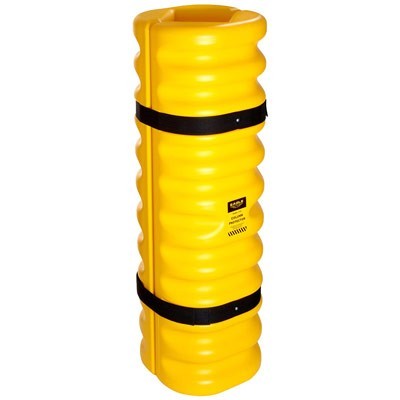

The 4-6 Inch Narrow Yellow Column Protector is a heavy-duty HDPE (high-density polyethylene) guard designed to protect narrow structural columns and I-beams (4 to 6 inches in diameter) from forklift impacts, vehicle collisions, and equipment strikes in warehouses, parking garages, and industrial facilities. Measuring 13"x13"x42" and weighing 16 lbs, this narrow-profile protector wraps around the column and secures in place to absorb and distribute impact energy, preventing costly structural damage. The bright safety yellow color with reflective band provides high visibility per OSHA color-coding standards (yellow
Technical Specifications
4-6 inch Narrow Yellow Column Protector — Column Protector
| SKU | A1704E |
|---|---|
| Fits Column Size | 4" to 6" diameter (narrow) |
| Dimensions | 13" x 13" x 42" |
| Material | High-density polyethylene (HDPE) |
| Color | Yellow with reflective band |
| Weight | 16 lbs |
| Compliance | OSHA 1910.144 color coding, ANSI Z535 |
| Shipping | Ships Oversize/LTL |
| Manufacturer | Eagle Manufacturing |
| Sold As | Each |
Expert Insights
The narrow column protector is specifically designed for smaller structural columns and I-beams that standard-width protectors cannot adequately fit. Measure your column diameter carefully before ordering -- this protector fits columns from 4 to 6 inches. For columns larger than 6 inches, select the standard 6-inch, 8-inch, 10-inch, or 12-inch column protectors. Per OSHA 29 CFR 1910.176, employers must ensure safe clearances and structural integrity in material handling areas. Column protectors are a key component of OSHA-compliant facility protection programs. The yellow color follows ANSI Z535 and OSHA 1910.144 color-coding standards where yellow designates caution and physical hazard marking. The reflective band enhances visibility in low-light conditions such as dimly lit warehouse aisles and parking garages. Install the protector by placing it around the base of the column at floor level. For high-traffic forklift areas, combine column protectors with floor-mounted bollards or guardrails for layered protection. The HDPE construction withstands repeated moderate impacts without cracking or breaking, and it will never rust or corrode in wet environments.
Facility Protection Products in Action
Facility protection products are standard capital expenditures for every warehouse, distribution center, manufacturing plant, and commercial facility with vehicle traffic. OSHA general duty clause (Section 5(a)(1)) requires employers to provide a workplace free of recognized hazards — unprotected columns, corners, and pedestrian zones in vehicle traffic areas represent exactly the kind of hazards OSHA cites.
Column protectors are deployed on every exposed structural column in warehouse aisles, loading areas, and forklift traffic zones. A single facility may require 20-100+ column protectors depending on size. Purchased by warehouse managers, facility maintenance directors, and distribution center operations teams.
Frequently Asked Questions
4-6 inch Narrow Yellow Column Protector
What column sizes does this narrow protector fit?
This narrow-profile protector is designed for structural columns and I-beams from 4 to 6 inches in diameter. Measure your column before ordering. For columns larger than 6 inches, choose the standard 6-inch, 8-inch, 10-inch, or 12-inch column protectors.
How does the column protector attach to the column?
The protector wraps around the base of the column at floor level. It is designed to fit snugly and can be secured with the included hardware. No drilling into the column or floor is required for basic installation.
Why is this protector yellow?
Yellow is the OSHA-designated color for caution and physical hazard marking per OSHA 1910.144 and ANSI Z535 standards. Yellow column protectors alert forklift operators and drivers to the presence of structural columns, reducing collision risk.
Will this protector crack or break on impact?
The HDPE (high-density polyethylene) construction is engineered to absorb and distribute moderate forklift and vehicle impacts without cracking. For extremely high-impact environments, consider adding floor-mounted bollards in front of the column protector for layered protection.
Can this be used outdoors in a parking garage?
Yes. HDPE is UV-stabilized and weather-resistant. It will not rust, corrode, or degrade from sun, rain, or temperature extremes, making it ideal for both indoor warehouses and outdoor parking structures.
What Our Customers Say
Real reviews from the facilities, field crews, and agencies that count on us.
-
-
We went with the lime green color for our narrow aisle rack area — drivers can see them from a distance. The foam padding is dense and holds up well. No tools to install makes life easy for our maintenance team.
-
Great product. We had columns getting dinged weekly before these went on. Now the protectors take the abuse instead. Price was competitive and free shipping clinched the deal. Would recommend for any facility with forklift traffic.
Our Most Popular Product Lines
Absorbent Pads & Rolls
Marine Absorbents & Booms
Cross-Reference Guide
This product is compatible with applications that use the following part numbers:
- introCompatible part numbers for 4-6 Inch Narrow Yellow Column Protector:
- partsA1704EA1706EA1706LMEA1706OREA1708EA1708LMEA1708ORE
- note4-6 Inch Narrow Yellow Column Protector (A1704E) by Eagle Manufacturing. For larger columns, see 6-inch (A1706E), 8-inch (A1708E), 10-inch (A1710E), and 12-inch (A1712E) column protectors. Available in Yellow, Lime Green, and Orange. AbsorbentsOnline SKU: A1704E.
