Replaced all our old flammable cabinets with these and the quality difference is obvious. The double-walled steel is heavy-duty, the doors close smoothly, and the 3-point lock is solid. Our OSHA inspector commented that these are the nicest safety cabinets he’s seen in any facility our size. Free shipping on items this heavy was a huge bonus.
16-Gal. Self-Closing Yellow Fire Cabinet w/ Legs
★★★★★ 5.0 out of 4 reviews · Google ReviewsRegular price
$1,721.97
$1,980.27
Sale price
$1,721.97
Regular price
$0.00
Save $258.30 (13%)
- 18-gauge double-walled steel —1½" air insulation between walls
- Meets OSHA & NFPA Code 30 —self-closing doors also meet UFC & NFPA Code 1
- Flammable liquid storage —tower design on welded legs
- FREE Shipping — ships to the Continental US
FREE Shipping — Continental US
Est. delivery:7-12business days - Ships from multiple US warehouses
Request A Quote
Fill out the form below and we’ll respond within 1 business day.
Share this product
Product Overview

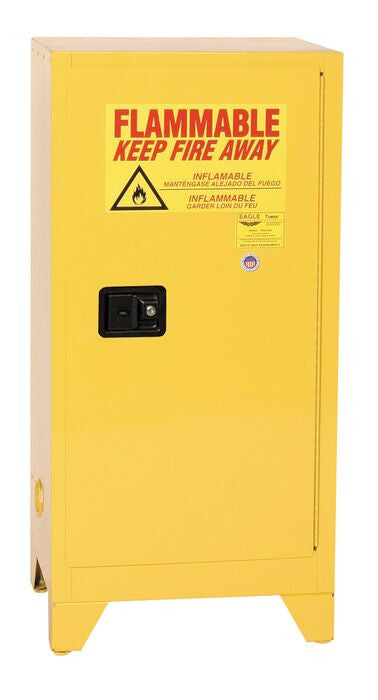

The 16-Gallon Self-Closing Yellow Flammable Safety Cabinet with Legs by Eagle Manufacturing is an NFPA 30 and OSHA 29 CFR 1910.106-compliant storage solution for Class I, II, and III flammable liquids. FM Approved and UL Listed.
Built with 18-gauge double-wall welded steel construction and a 2-inch leak-proof sump, this cabinet features a self-closing door mechanism with fusible link that automatically latches shut during a fire event. The taller leg design (48" overall height) provides additional storage height compared to the 12-gallon model while maintaining a compact 23" x 18" footprint.

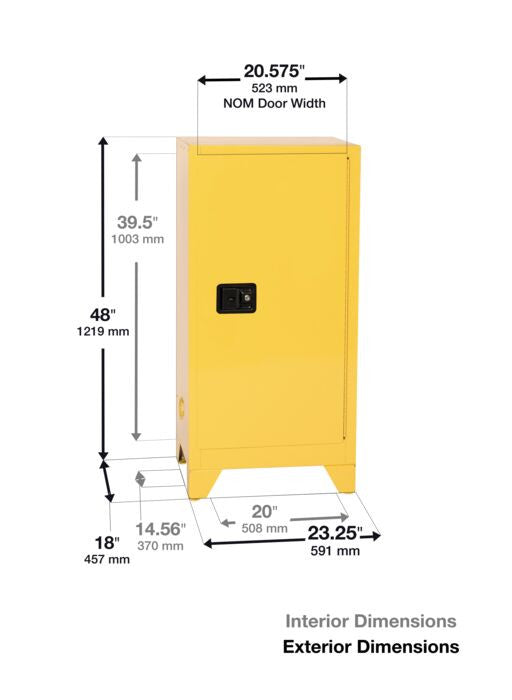

Capacity: 16 gallons with 1 adjustable shelf. Dimensions: 23"W x 18"D x 48"H (with legs). Weight: 160 lbs. Yellow color per OSHA standards indicates flammable liquid storage. Built-in grounding connection for static discharge protection.
Manufactured by Eagle Manufacturing and sold by AbsorbentsOnline — trusted since 1985. Ships FREE to the Continental US.
Technical Specifications
| AbsorbentsOnline SKU | A1905XLEGSE |
|---|---|
| Manufacturer | Eagle Manufacturing |
| Capacity | 16 Gallons |
| Door Type | Self-Closing (fusible link) |
| Number of Doors | 1 |
| Color | Yellow (OSHA flammable liquid standard) |
| Dimensions (OD) | 23"W x 18"D x 48"H (with legs) |
| Weight | 160 lbs |
| Adjustable Shelves | 1 |
| Construction | 18-gauge double-wall welded steel |
| Sump | 2-inch leak-proof |
| Grounding | Built-in grounding connection |
| Compliance | NFPA 30, OSHA 29 CFR 1910.106, FM Approved, UL Listed |
| Shipping | FREE to Continental US |
Expert Insights
The 16-gallon self-closing cabinet is an excellent choice for workshops, labs, and satellite storage areas that need slightly more capacity than the 12-gallon model while maintaining a compact tower footprint. The 48" height (vs 39" for the 12-gallon) gives you 4 additional gallons without increasing the floor space.
Under NFPA 30 Section 9.5, this cabinet comfortably falls within the 60-gallon-per-cabinet limit. The self-closing door with fusible link provides the highest level of fire protection — during a fire, the door automatically closes to contain flammable vapors. This feature is increasingly required by insurance underwriters and fire marshals.

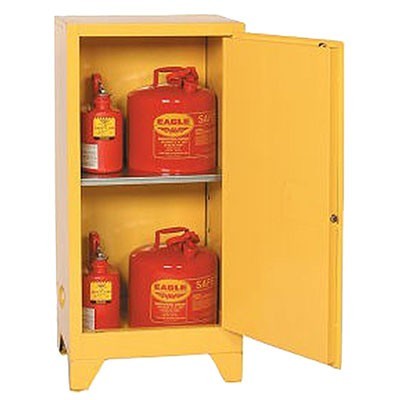

The single-shelf design accommodates standard 1-gallon and 5-gallon containers. For larger storage needs, consider stepping up to the 30-gallon or 45-gallon two-door models. For aggressive chemicals, pair with our blue corrosive storage cabinets.
Ground the cabinet before first use. Keep containers capped when not dispensing. Maintain a 10-foot clearance from exits per fire code best practices.
Safety Cabinets in Action
Manufacturing plants and maintenance shops position tower-style flammable cabinets along production lines where workers need quick access to solvents, thinners, and cleaning agents. The elevated design keeps containers at waist height for ergonomic dispensing and allows spill cleanup beneath the cabinet without moving it.
Purchased by safety managers, facility directors, lab managers, EHS coordinators, warehouse supervisors, and compliance officers. All cabinets are manufactured in the USA with corrosion-resistant powder coating and arrive fully assembled with adjustable shelves.
Frequently Asked Questions
16-Gal. Self-Closing Yellow Fire Cabinet w/ Legs
How many gallons of flammable liquids can I store per room?
Under NFPA 30, up to 60 gallons of Class I and Class II flammable liquids per cabinet. Up to three cabinets (180 gallons total) per fire area without additional fire protection.
Self-closing vs manual close — which should I choose?
Self-closing is recommended. The fusible link automatically closes the door in a fire, containing vapors and slowing spread. Many insurance carriers and local fire codes require self-closing mechanisms.
Do I need to ground this cabinet?
Yes. Connect the built-in grounding lug to your facility ground before storing flammable liquids. This prevents static discharge during container handling.
What size containers fit in this cabinet?
The 16-gallon cabinet with 1 adjustable shelf fits standard 1-gallon cans, 5-gallon pails, and smaller containers. The 23" x 18" interior accommodates most standard flammable liquid containers.
What is the difference between 12-gal and 16-gal models?
Both share the same 23" x 18" footprint. The 16-gallon model is taller (48" vs 39" with legs), providing 4 additional gallons of storage capacity without taking up more floor space.
How often should I inspect this cabinet?
Quarterly inspections of door latches, hinges, self-closing mechanism, grounding connection, and sump per OSHA best practices. Document inspections for compliance records.
What Our Customers Say
Real reviews from the facilities, field crews, and agencies that count on us.
-
-
The tower design is perfect for our production floor. Having the solvents at waist height means no bending over, and the legs make it easy to see and clean up any drips underneath. Bought three for different stations and every one arrived in perfect condition. Great product.
-
Needed compliant safety storage for our facility expansion and AbsorbentsOnline had the best prices we found anywhere. The cabinets are well-built, arrived damage-free, and our compliance team had zero issues during the fire marshal walkthrough. We’ll be ordering more as we expand additional areas. The customer service team was also very responsive when we had questions about which sizes to order.
Our Most Popular Product Lines
Absorbent Pads & Rolls
Marine Absorbents & Booms
Cross-Reference Guide
This product is compatible with applications that use the following part numbers:
- introThis product is compatible with applications using the following part numbers:
- partsA1905XLEGSE1905XLEGSEagle 19051905X
- note16-Gallon Self-Closing Flammable Safety Cabinet with Legs. 18-gauge double-wall steel, NFPA 30 compliant, FM Approved, UL Listed. Eagle Manufacturing. AbsorbentsOnline SKU: A1905XLEGSE.
