16-Gal. Manual Close Yellow Fire Cabinet w/ Legs
★★★★★ 5.0 out of 4 reviews · Google ReviewsRegular price
$1,674.97
$1,926.22
Sale price
$1,674.97
Regular price
$0.00
Save $251.25 (13%)
- 18-gauge double-walled steel —1½" air insulation between walls
- Meets OSHA & NFPA Code 30 —compliant for flammable & combustible liquid storage
- Flammable liquid storage —tower design on welded legs
- FREE Shipping — ships to the Continental US
FREE Shipping — Continental US
Est. delivery:7-12business days - Ships from multiple US warehouses
Request A Quote
Fill out the form below and we’ll respond within 1 business day.
Share this product
Product Overview

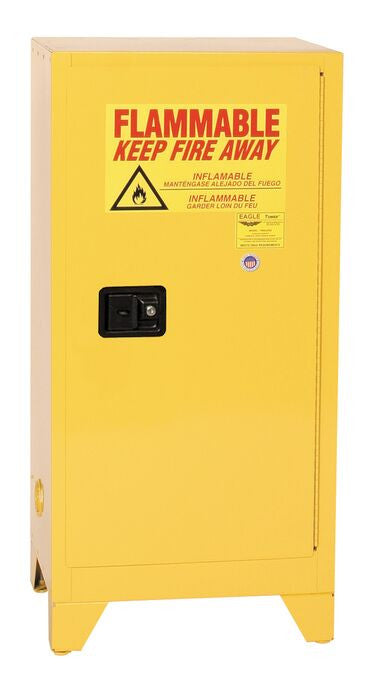

The 16-Gallon Manual Close Yellow Flammable Safety Cabinet with Legs by Eagle Manufacturing provides NFPA 30 and OSHA 29 CFR 1910.106-compliant storage for Class I, II, and III flammable liquids. FM Approved and UL Listed.

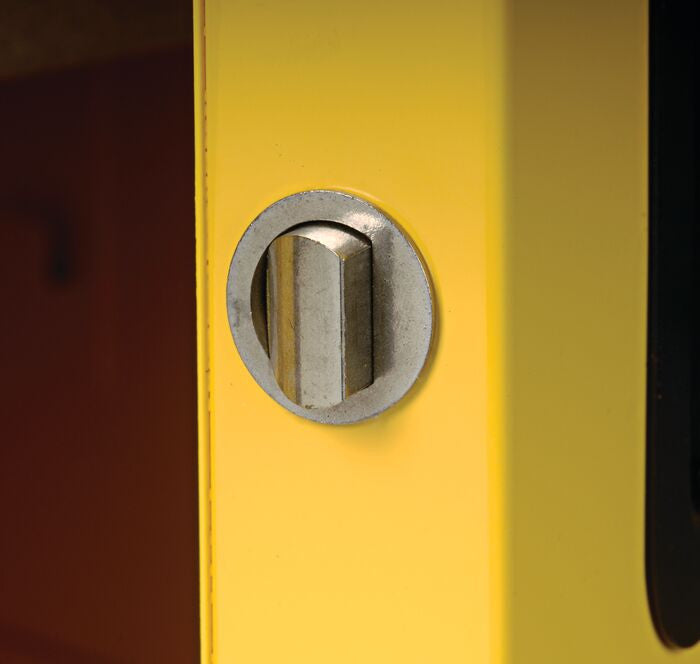

Constructed with 18-gauge double-wall welded steel and a 2-inch leak-proof sump. Features a manual-close door with three-point latch — a cost-effective alternative to self-closing models while meeting all NFPA 30 requirements. The raised leg design (44" overall height) keeps contents off the floor.
Capacity: 16 gallons with 1 adjustable shelf. Dimensions: 23"W x 18"D x 44"H (with legs). Weight: 160 lbs. Yellow color per OSHA flammable liquid standards. Built-in grounding connection.
Manufactured by Eagle Manufacturing. Sold by AbsorbentsOnline — trusted since 1985. Ships FREE to the Continental US.
Technical Specifications
| AbsorbentsOnline SKU | A1906XLEGSE |
|---|---|
| Manufacturer | Eagle Manufacturing |
| Capacity | 16 Gallons |
| Door Type | Manual Close (three-point latch) |
| Number of Doors | 1 |
| Color | Yellow (OSHA flammable liquid standard) |
| Dimensions (OD) | 23"W x 18"D x 44"H (with legs) |
| Weight | 160 lbs |
| Adjustable Shelves | 1 |
| Construction | 18-gauge double-wall welded steel |
| Sump | 2-inch leak-proof |
| Grounding | Built-in grounding connection |
| Compliance | NFPA 30, OSHA 29 CFR 1910.106, FM Approved, UL Listed |
| Shipping | FREE to Continental US |
Expert Insights
The 16-gallon manual close cabinet offers the same NFPA 30-compliant storage as the self-closing version at a lower price point. Same 18-gauge double-wall steel, same 2-inch sump, same FM/UL certifications — the only trade-off is the manual door mechanism.
Manual close doors require the operator to close and latch after each use. While fully NFPA 30 compliant, check with your local fire marshal and insurance carrier — some jurisdictions mandate self-closing doors. If budget allows, the self-closing version eliminates any compliance uncertainty.
The 16-gallon tower design (23" x 18" footprint, 44" tall) is ideal for tight spaces — maintenance closets, lab alcoves, and satellite storage areas near the point of use.
Ground the cabinet before first use. Containers should remain capped when not dispensing. Inspect latches and grounding quarterly.
Safety Cabinets in Action

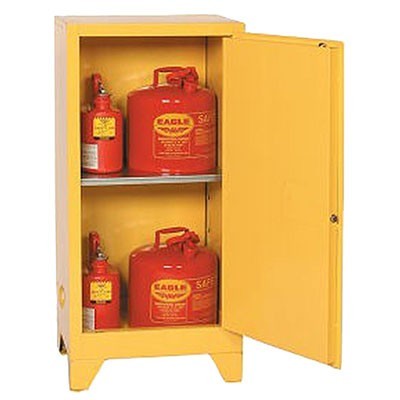

Manufacturing plants and maintenance shops position tower-style flammable cabinets along production lines where workers need quick access to solvents, thinners, and cleaning agents. The elevated design keeps containers at waist height for ergonomic dispensing and allows spill cleanup beneath the cabinet without moving it.
Purchased by safety managers, facility directors, lab managers, EHS coordinators, warehouse supervisors, and compliance officers. All cabinets are manufactured in the USA with corrosion-resistant powder coating and arrive fully assembled with adjustable shelves.
Frequently Asked Questions
16-Gal. Manual Close Yellow Fire Cabinet w/ Legs
Is a manual close cabinet compliant with fire codes?
Yes. Manual close meets NFPA 30 and OSHA 29 CFR 1910.106. Some local codes and insurers require self-closing — check before purchasing.
Do I need to ground this cabinet?
Yes. Connect the built-in grounding lug to facility ground before storing flammable liquids.
What is the difference between this and the self-closing model?
Same construction, capacity, and certifications. The self-closing model door automatically latches via fusible link in a fire. Manual close requires the operator to close the door. Self-closing costs more but provides enhanced fire protection.
How many gallons can I store per room?
NFPA 30 allows up to 60 gallons per cabinet and up to three cabinets (180 gallons) per fire area without additional fire protection.
Can I store different flammable liquids together?
Same-class flammable liquids can be stored together. Never mix incompatible chemicals. Refer to each product SDS.
How often should I inspect?
Quarterly — check latches, hinges, grounding, and sump. Document all inspections.
