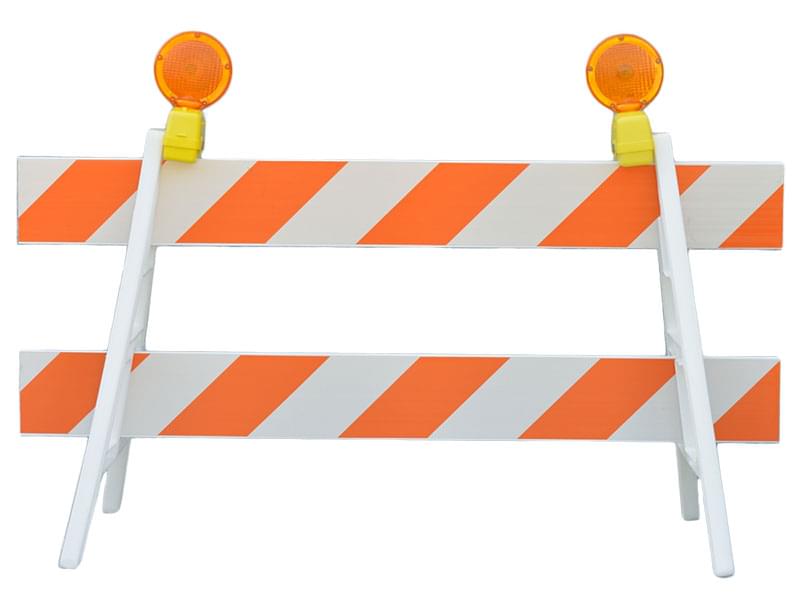

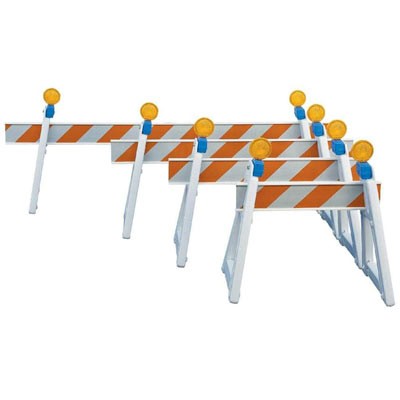

12' Plastic I-Beam Barrier Rail
★★★★★ 5.0 out of 4 reviews · Google ReviewsFill out the form below and we’ll respond within 1 business day.
Share this product
Product Overview
Technical Specifications
| SKU | A44012-NSV (Non-sheeted), A44012-ES-1RV (1-Side EG), A44012-ES-2V (2-Sides EG), A44012-FHIP-1RV (1-Side HI), A44012-FHIP-2V (2-Sides HI), A44012-DG-1RV (1-Side DG), A44012-DG-2V (2-Sides DG) |
|---|---|
| Length | 12 feet |
| Material | Flexible, impact-resistant polyethylene (I-beam profile) |
| Color | Orange with white reflective striping (sheeted versions) |
| Weight | 11 lbs |
| Sheeting Options | Non-sheeted, Engineer Grade (EG), High-Intensity Prismatic (HIP), Diamond Grade (DG) |
| Sheeting Sides | 1-side or 2-side options available |
| Sign Clip Compatible | Yes - accepts sign clip A44003-RSCV |
| Compatibility | Fits A-Frame Barricade Legs (A44000V) |
| Compliance | MUTCD retroreflectivity standards, OSHA 1926.202 |
| Sold As | Each |
| Lead Time | 2 weeks to ship |
Expert Insights
For DOT contractors, construction companies, and utility companies: Barricades and barrier rails are essential traffic control devices for lane closures, detours, and work zone delineation. Our A-frame, folding, and barrier rail options are built to MUTCD standards and engineered for rapid deployment across multiple job sites.
Fleet purchasing and seasonal stocking programs ensure your crews always have compliant barricades on hand. All units meet MUTCD compliance requirements for color, retroreflectivity, and dimensional specifications — keeping your projects in line with federal and state DOT regulations.
📞 Need volume pricing? Call (800) 869-9633 for quantity discounts on orders of 10+ units. AbsorbentsOnline has served industrial, municipal, and commercial customers since 1985.
Frequently Asked Questions
Why is the 12-foot rail only available as an I-beam and not an economy rail?
Economy rails max out at 10 feet. The 12-foot length requires the structural integrity and flexibility of the I-beam polyethylene construction to maintain its shape and withstand the wind loads and potential vehicle impacts associated with such a wide span.
How many people are needed to install a 12-foot rail?
Two-person handling is strongly recommended. While the rail weighs only 11 lbs, the 12-foot length makes it difficult for one person to align and insert into the A-Frame leg slots, especially in windy conditions or near live traffic.
Can I use 12-foot rails in a taper configuration?
Yes. Use 12-foot rails at the beginning of approach tapers where maximum visibility is needed, then transition to shorter rails through the taper. MUTCD provides specific taper length formulas based on speed limit and number of lanes.
What is the wind load concern with 12-foot rails?
The 12-foot reflective surface area creates substantial wind resistance. Without proper ballasting (sand-filled A-Frame leg compartments at 40+ lbs per leg), barricade assemblies with 12-foot rails can tip over in moderate winds or vehicle-generated air turbulence.
Is the 12-foot I-beam rail NCHRP 350 compliant?
The I-beam barrier rail system is designed to meet MUTCD requirements for Type I barricades. For NCHRP 350 crashworthiness testing results, contact the manufacturer VizCon directly or consult the FHWA Eligible Crashworthy Devices list.
What Our Customers Say
Real reviews from the facilities, field crews, and agencies that count on us.
-
★★★★★
"We've been running these barricades on DOT projects for over two years now. They hold up to daily abuse from our crews loading and unloading them off trucks, and the powder coat finish still looks sharp. Definitely the best value we've found for the price point."
✅ Verified Buyer
-
★★★★★
"Setup and teardown is a breeze. My crew can deploy a full line of A-frames in half the time it used to take with our old barricades. The folding mechanism is simple and nothing to jam up."
✅ Verified Buyer
-
★★★★★
"The reflective sheeting on these rails is extremely visible at night. Our utility crews work a lot of after-hours emergency jobs and the high-intensity prismatic sheeting gives us confidence that motorists can see the work zone clearly."
✅ Verified Buyer
Our Most Popular Product Lines
Absorbent Pads & Rolls
Marine Absorbents & Booms
Cross-Reference Guide
This product is compatible with applications that use the following part numbers:
- introCompatible part numbers for 12-Foot Plastic I-Beam Barrier Rail:
- partsA44012-NSVA44012-ES-1RVA44012-ES-2VA44012-FHIP-1RVA44012-FHIP-2VA44012-DG-1RVA44012-DG-2V
- note12ft I-Beam Barrier Rail by VizCon -- the longest rail available in the A-Cade system. Pairs with A-Frame Barricade Legs (A44000V) and Sign Clips (A44003-RSCV). Also available in 4ft, 6ft, 8ft, and 10ft lengths. AbsorbentsOnline SKU: A44012-NSV (non-sheeted base).
